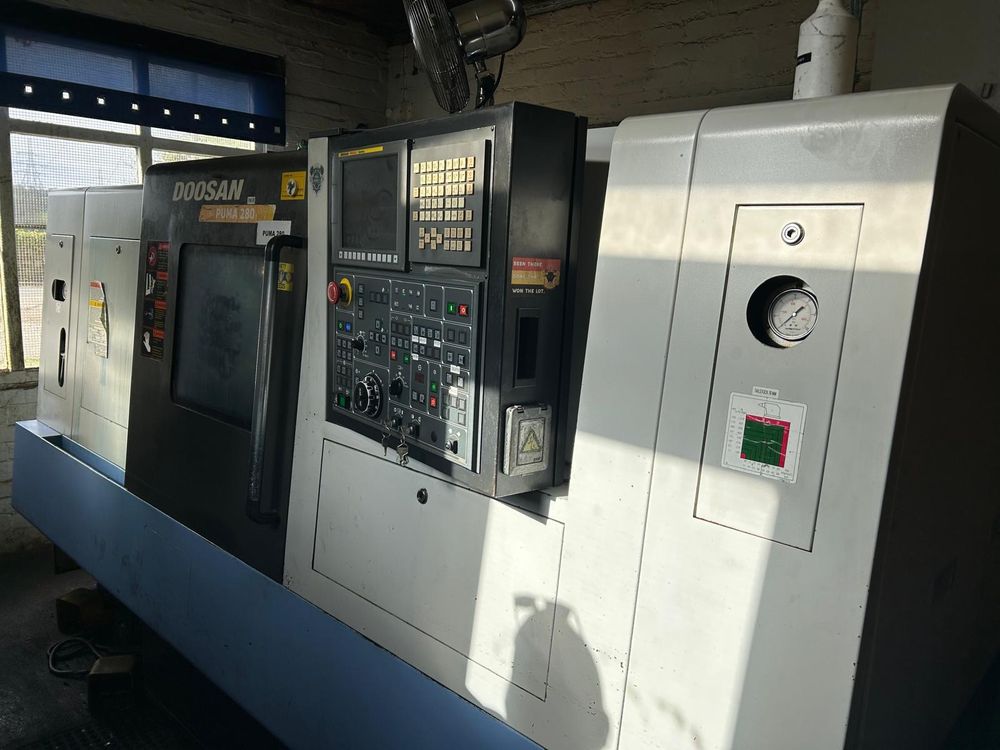

Doosan FANUC 0i Series 3500 rpm PUMA 280 2 Axis

DOOSAN PUMA 280
2008

Bar capacity 76 mm
Boring bar holder diameter 50 mm
Chuck size 315 mm
Control FANUC 0i Series
Machine dimensions 3418 x 1670 x 1735 mm
Machine weight 4700 kg
Maximum cutting diameter 420 mm
Maximum cutting length 658 mm
Rapid feedrates XZ 20 x 24 m/min
Spindle motor power 22 kW
Spindle nose A2-8
Spindle speed 3500 rpm
Swing 630 mm
Swing over carriage 500 mm
Tailstock quill diameter 100 mm
Tailstock quill stroke 100 mm
Taper MT #5
Tool size 25 x 25 mm
Turret positions 10 station
X axis travel 242 mm
Z axis travel 680 mm
3 jaw chuck
Coolant system
Interlocked guards
Low voltage light
Swarf conveyor
Tailstock
Tool setter
