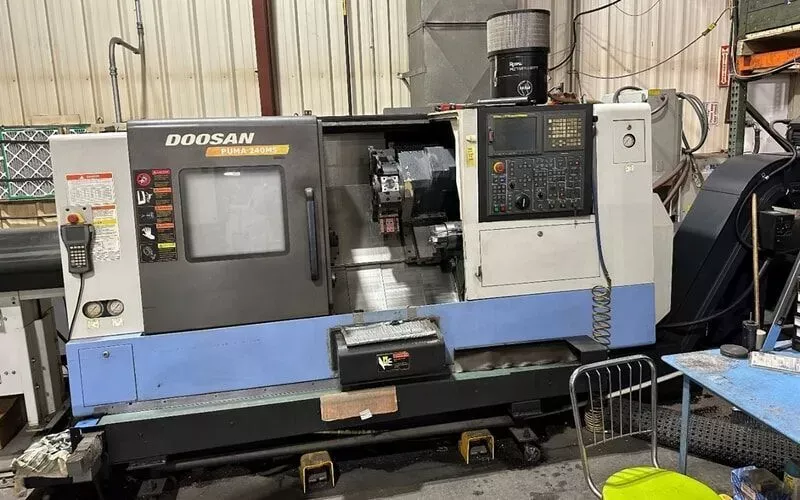

Doosan Fanuc 18i-TB CNC control 5000 RPM PUMA 240MS 4 Axis

DOOSAN PUMA 240MS
2009

11.4" max turning diameter
19.7" max machining length
21.7" max swing over bed
32.3" distance between spindles
2.67" bar capacity
8" X-axis travel
22.8" Z-axis travel
22.8" B-axis travel
5000 RPM spindle speed
A2-6 spindle nose
2.67" spindle bore diameter
25 HP spindle motor
10" spindle chuck size
6000 RPM sub-spindle speed
7.5 HP sub-spindle motor
4" sub-spindle chuck size
945 ipm X1/X2 rapid traverse
1181 ipm Z1/Z2 rapid traverse
1181 ipm W-axis rapid traverse
0.001° C-axis index
12-station turret
7.5 HP turret rotary tool power
1 second turret index time
126" x 65" x 70" machine dimensions
10,800 lbs machine weight
Fanuc 18i-TB CNC control
Sub spindle
ATS ML-580 bar feeder
Royal FX550 mist eliminator
Live tooling
Collet chuck attachment
Coolant system
Chip conveyor
Tool touch probe
