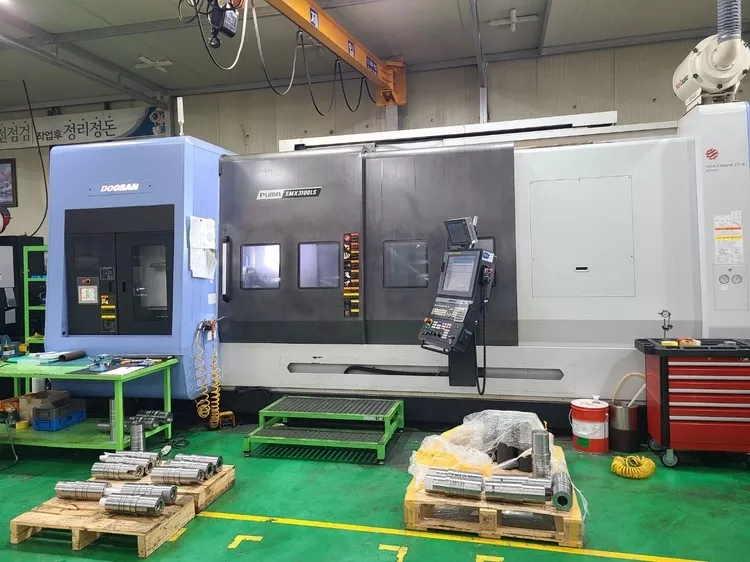

Doosan FANUC 31-B5 CNC control 2500 RPM SMX 3100LS 6 Axis

DOOSAN SMX 3100LS
2018

Swing over bed 26″
Turning diameter 26″
Turning length 100″
Chuck size 1 15″
Chuck size 2 12″
Bar capacity 1 4″

Spindle speed 1 2500 RPM
Bar capacity 2 3.6″
Spindle speed 2 4000 RPM

B-axis head indexing 0.0001°
B-axis milling spindle taper Capto C6
B-axis milling spindle speed 12000 RPM
B-axis milling spindle horsepower 35 HP

ATC for milling spindle 80 tools
Tool diameter 3.55″
Tool length 17.7″
Tool weight 26.5 lb

X1-axis travel 24.8″
Z1-axis travel 101.8″
Y1-axis travel 11.8″
C-axis indexing 1 360°
W-axis travel sub spindle 98.4″

Rapid traverse rate X1 1889.8 IPM
Rapid traverse rate Z1 1181.1 IPM
Rapid traverse rate Y1 1417.3 IPM
Machine weight 45,195 lb
Machine dimensions 252″ x 118.5″ x 112.2″

FANUC 31-B5 CNC control
Scales for X, Y, Z
SMW steady rest 3.93″ to 16.1″
Chip conveyor
X-axis ballscrew cooling
Absolute pulse coder
Automatic electric tool setter
Program storage 1280M
Embedded Ethernet
AICC II 600 blocks
8 pairs work coordinates
ATC operating panel with touch camera
