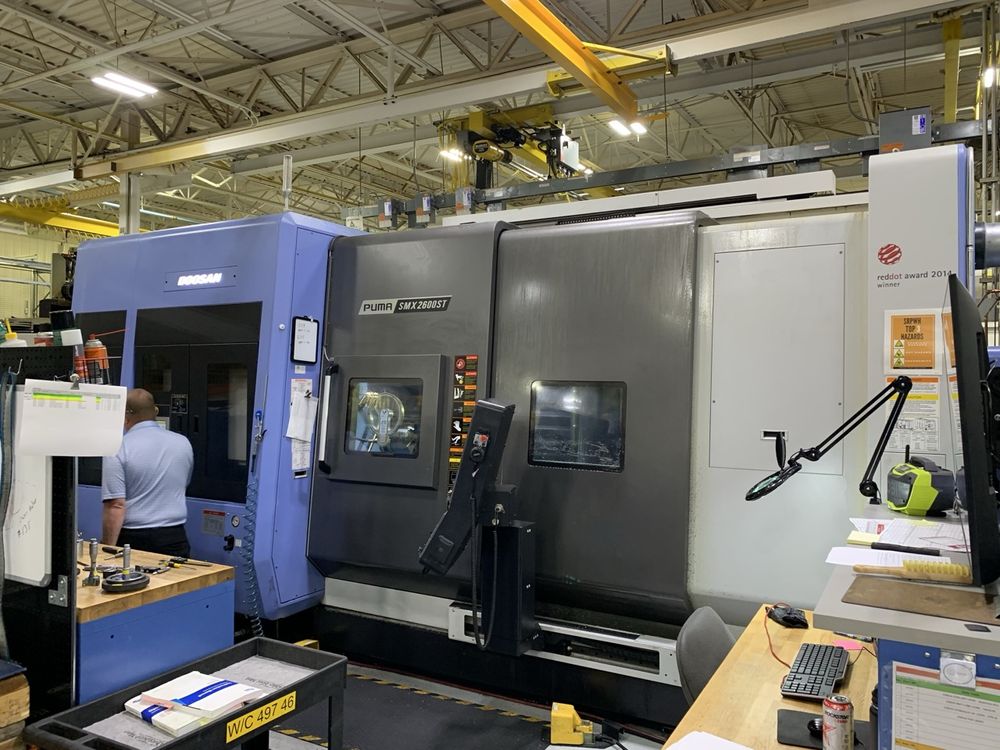

Doosan FANUC 31i-B5 with CUFOS platform and 19″ iHMi touchscreen 12,000 RPM PUMA SMX2600ST 5 Axis

X-Axis Travel (Upper Turret) 695 mm (27.4 in.)
X2-Axis Travel (Lower Turret) 235 mm (9.3 in.)
Y-Axis Travel ±150 mm (±5.9 in.)
Z-Axis Travel (Upper Turret) 1,585 mm (62.4 in.)
Z2-Axis Travel (Lower Turret) 1,540 mm (60.6 in.)
B-Axis Swivel ±120 degrees

Rapid Traverse Rate X/Z-Axis 48 m/min (1,889.8 IPM)
Rapid Traverse Rate Y-Axis 36 m/min (1,417.3 IPM)
Rapid Traverse Rate Z2-Axis 36 m/min (1,417.3 IPM)
Chuck Size 10 in. (255 mm) Both Spindles
Bar Capacity 81 mm (3.2 in.)

Maximum Turning Diameter 660 mm (26 in.)
Maximum Turning Length 1,540 mm (60.6 in.)
Main Spindle Speed 4,000 RPM
Main Spindle Power 26 kW (35 hp)
Right (Sub) Spindle Speed 4,000 RPM
Right (Sub) Spindle Power 26 kW (35 hp)
Milling Spindle Speed 12,000 RPM
Milling Spindle Power 22 kW (29.5 hp)
Milling Spindle Taper CAPTO C6
ATC Capacity 120
Lower Turret Stations 12
Tool Change Time Tool-to-Tool 1.8 s
Tool Change Time Chip-to-Chip 7.8 s
Machine Weight 18,000 kg (39,683 lbs)
Machine Dimensions (L x W x H) 5,790 x 3,021 x 2,820 mm (228 x 119 x 111 in.)
Control FANUC 31i-B5 with CUFOS platform and 19″ iHMi touchscreen
5-Axis Machining B-Axis Milling Head
Movable Control Panel
Easy Front Access to Tool Magazine
Thermal Compensation
Automation Ready Options for Robotic Part Handling
Automation Ready Options for Bar Feeding
Automation Ready Options for High-Pressure Coolant
