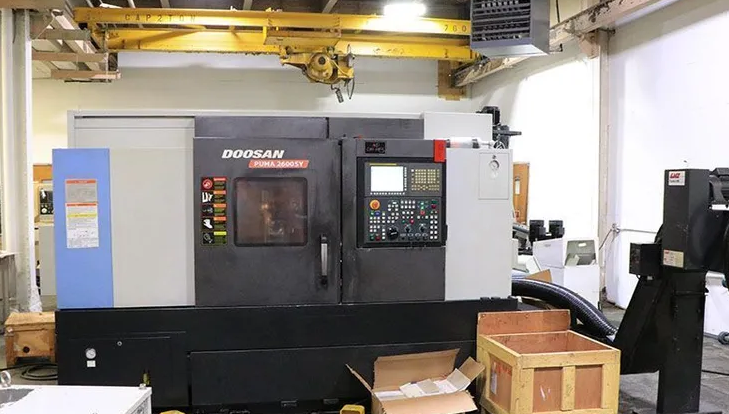

Doosan FANUC 31iT CNC control 4,000 RPM PUMA 2600SY 5 Axis

X-axis travel 10.23"
Z-axis travel 32.67"
Y-axis travel 4.13" (±2.065")
B-axis travel (sub-spindle) 32.6"
X & Z axis rapid traverse rate 1,181 IPM
Y-axis rapid traverse rate 394 IPM
B-axis rapid traverse rate 1.181 IPM
Minimum programmable angle 0.001°
C-axis contouring torque 112 ft-lbs
C-axis braking torque 663 ft-lbs
FANUC 31iT CNC control
Toolsetter
Swing over bed 30.7"
Swing over front door 26.8"
Swing over carriage 24.8"
Max turning diameter main spindle 14.8"
Max turning length 29.92"
Distance between main & subspindle nose 43.46"
Bar capacity 3.03"
Spindle speed 4,000 RPM
Spindle nose ASA-A2-8
Draw tube I.D. 3.03"
Spindle bore diameter 3.38"
AC high torque spindle motor (30 min) 30 HP
Sub-spindle speed 6,000 RPM
Sub-spindle motor (30 min) 20 HP
Sub-spindle bore 2.44"
Sub-spindle draw tube I.D. 1.97"
Rotating tool speed 5,000 RPM
Rotating tool spindle motor (15 min) 7.5 HP
Rotating tool torque (15 min) 34.7 ft-lbs
Rotating tool collet type ER32
Milling collet capacity 1/8" to 3/4"
Number of tools 12
Number of index positions 24
Tool holder type BMT 65P
Turning tool shank size 1.0"
Boring bar diameter main spindle 2.0"
Boring bar diameter sub-spindle 1.0"
Tool selection bi-directional
10" 3-jaw hydraulic chuck on main spindle
8" 3-jaw hydraulic chuck on sub-spindle
Parts catcher
Parts conveyor
Chip conveyor
All available live & static toolholders
Floor space (L x W) 153" x 74"
Machine height 85"
Height from floor to spindle center 43.7"
Approximate net weight 14,220 lbs
