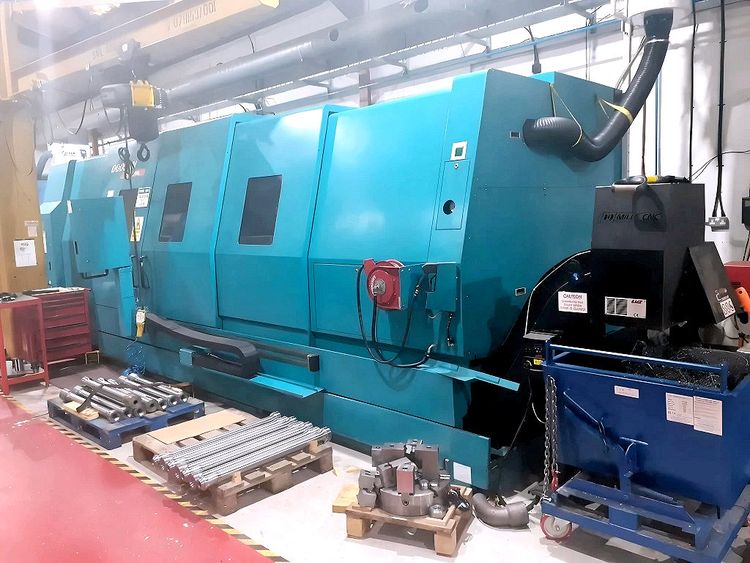

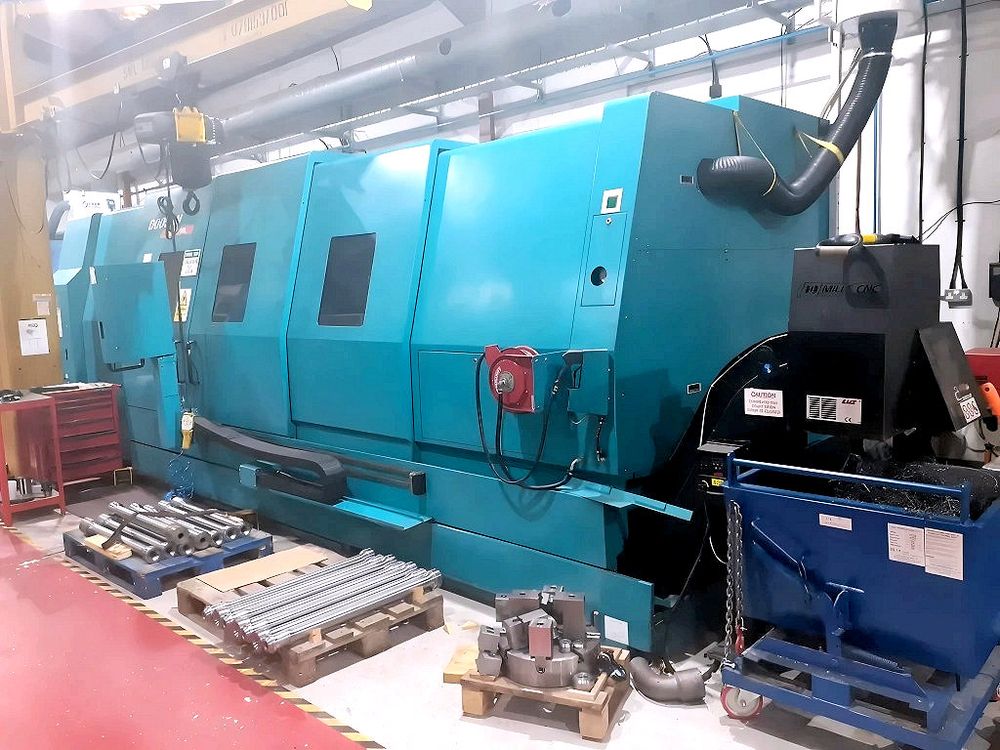

Doosan FANUC 32i 1500 rpm Puma 700L 2 Axis

Doosan Puma 700L
Year: 2014

3 Jaw Chuck
Coolant
Hydraulic Power Work Steady
Interlocked guards
Low Volt Light
Manuals
Swarf Conveyor
Tailstock
Tooling
Bar Capacity: 164 mm
Boring Bar Holder Diameter: 80 mm
Chuck Size: 32" (800 mm)
Control: FANUC 32i
Machine Dimensions: 8510 x 2770 x 2590 mm
Machine Weight: 21800 kg
Maximum Cutting Diameter: 900 mm
Maximum Cutting Length: 3200 mm
Rapid Feedrates XZ: 12 x 10 m/min
Spindle Motor Power: 45/37 kW
Spindle Nose: A1-15
Spindle Speed: 1500 rpm
Swing: 1030 mm
Swing over the Cross-slide: 800 mm
Tailstock Body Travel: 3135 mm
Tailstock Quill Diameter: 160 mm
Tailstock Quill Stroke: 150 mm
Tailstock Taper: MT #6
Tool Size: 32 x 32 mm
Turret Positions: 12 Station
X Axis Travel: 470 mm
Z Axis Travel: 3235 mm
