Doosan Fanuc 32i control 1500 rpm PUMA 700 L 2 Axis

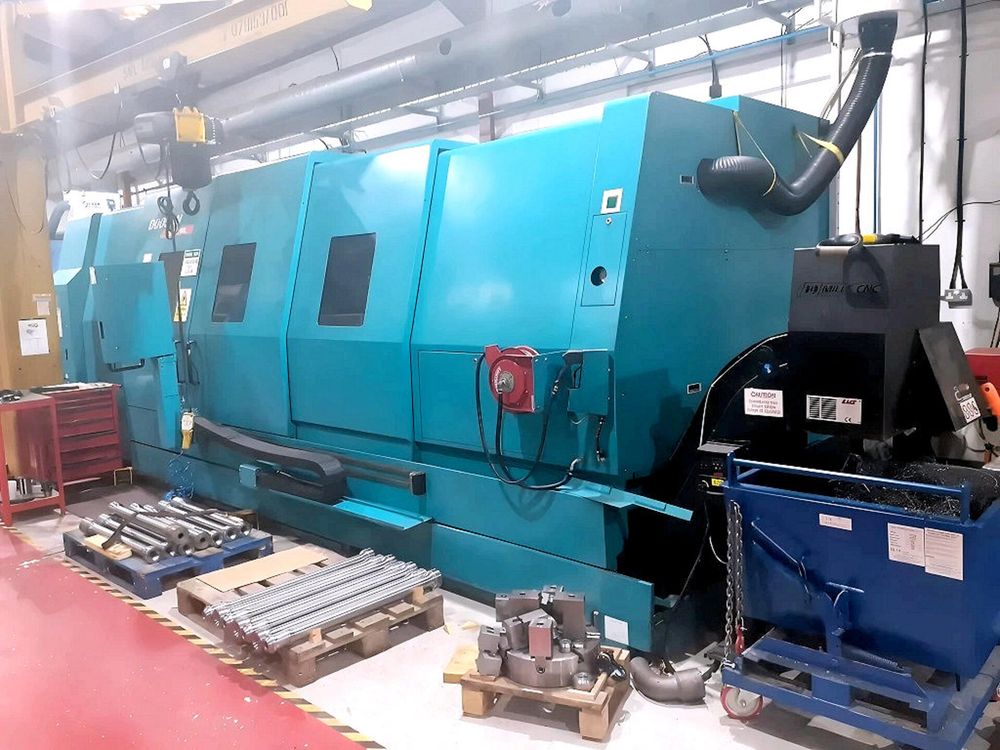

DOOSAN PUMA 700 L
2014

Swing over bed: 1030 mm
Swing over saddle: 800 mm
Maximum turning diameter: 900 mm
Maximum turning length: 3200 mm
Bar capacity: 164 mm
Spindle speed: 1500 rpm
Spindle power: 45/37 kW
X axis travel: 470 mm
Z axis travel: 3235 mm
Spindle nose: A1-15
OD tool size: 32 x 32 mm
12 station turret
Fanuc 32i control
800 mm 3-jaw chuck
Tailstock body length: 3135 mm
Tailstock quill stroke: 150 mm
Tailstock quill diameter: 160 mm
Tailstock taper: MT #6
Tool setter
Hydraulic steady
Swarf conveyor
Machine dimensions: 7360 x 2770 x 2780 mm
Machine weight: 21800 kg
