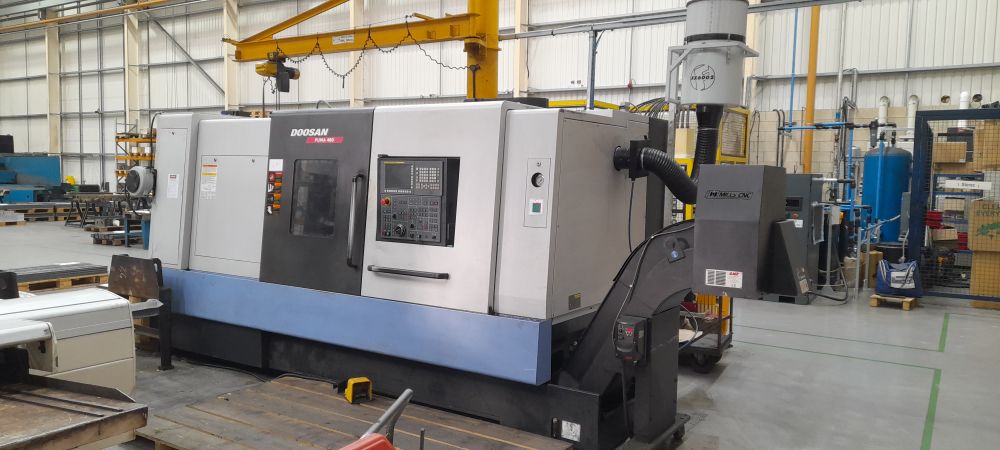

Doosan FANUC 32i Model B Variable Speed Puma 480D 2 Axis

Doosan Puma 480D
2014

3 jaw chuck
Coolant
Interlocked guards
Low volt light
Rear mounted chuck
Swarf conveyor
Tailstock
Tooling

Boring bar holder diameter 80 mm
Chuck size 610 mm (24")
Control FANUC 32i Model B

Machine dimensions 4613 x 2050 x 2197 mm
Machine weight 10800 kg
Maximum cutting diameter 650 mm
Maximum cutting length 992 mm
Rapid feedrates XZ: 16 x 10 m/min

Spindle bore 275 mm
Spindle motor power 45 kW
Spindle nose ISO 702-4 No.20
Spindle speed 1000 rpm
Standard cutting diameter 380 mm

Swing 900 mm
Swing over the cross-slide 720 mm

Tailstock quill diameter 120 mm
Tailstock quill stroke 120 mm
Tailstock taper MT #6

Tool size 32 x 32 mm
Turret positions 10 station
X axis travel 362 mm
Z axis travel 1105 mm
