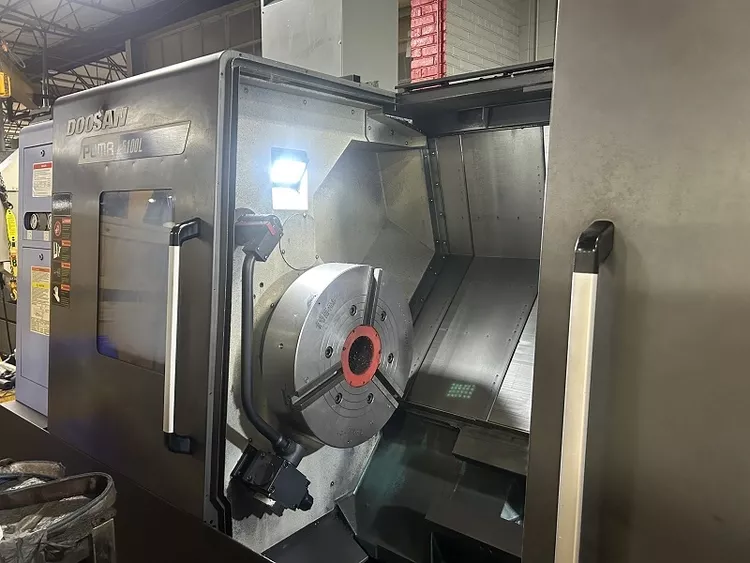

Doosan FANUC i 1,500 rpm PUMA 5100LB 3 Axis

Rapid traverse X-axis: 630 in/min
Rapid traverse Z-axis: 708 in/min
C-axis: Not equipped
W-axis travel: 0
CNC control: FANUC i
Manual Guide i
Tool presetter
Tool setter
Embedded Ethernet function
Swing over bed: 35.4 in
Turning diameter: 25.6 in
Machining length: 80.4 in
Distance between centers: 85 in
Bar capacity: 6.5 in
Spindle speed: 1,500 rpm
Spindle motor power: 60 hp
Spindle nose: A1-15
Spindle bore diameter: 7.1 in
Gear ranges: 2
Chuck size: 24 in
Turret stations: 10
Tailstock quill diameter: 4.7 in
Tailstock taper: MT6
Tailstock quill travel: 4.7 in
Tailstock travel: 80.7 in
Programmable tailstock: Yes
Spindle chiller
24 in 3-jaw hydraulic chuck
Chip conveyor
All tool holders
All manuals
