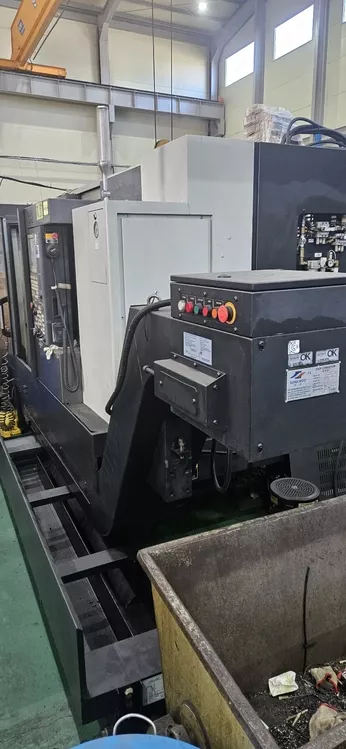

Doosan FANUC I CNC CONTROL 4500 RPM 2600SY 6 Axis

DOOSAN 2600SY
Year: 2018

Swing Over Bed: 30.7"
Turning Diameter: 14.8"
Turning Length: 29.9"
Distance Between Centers: 0
Distance Between Spindles: 32.7"
Chuck Size 1, 2: 10", 8"
Spindle Nose 1, 2: 2.0000
Spindle Bore Diameter 1, 2: 3.34", 2.4"
Bar Capacity 1, 2: 3"
Spindle Speeds 1, 2: 4000, 4500 RPM
Spindle Horsepower 1, 2: 30, 11 HP
B - Axis Head Indexing: 0
B - Axis Milling Spindle Speed: 0
B - Axis Milling Spindle Taper: 0
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 0
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 10.2"
Z - Axis Travel Z1, Z2, Z3: 32.7"
Y - Axis Travel Y1, Y2, Y3: 4.1"
C - Axis Indexing 1, 2: .001, .001 INDEXING
W - Axis Travel Sub Spindle: 32.7"
Rapid Traverse Rates X1, X2, X3: 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 393 IPM
Turret Tool Positions 1, 2, 3: 12/24 POSITION
Turret Rotary Tool Speeds 1, 2, 3: 5000 RPM
Turret Rotary Tool Horse Power 1, 2, 3: 7.5 HP
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 16,100 LBS.

FANUC I CNC CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
AUTO TOOL PRESETTER
EMBEDDED ETHERNET FUNCTION
CHIP CONVEYOR
2 ANGULAR AND 2 STRAIGHT MILLING HOLDERS
