Doosan FANUC i Plus 2800 rpm Puma 3100Y 4 Axis

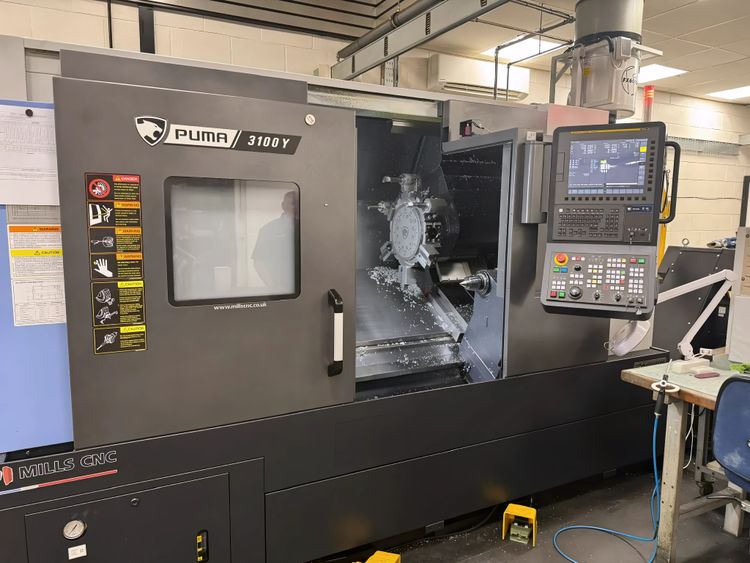

DOOSAN PUMA 3100Y
Year: 2022

X axis travel: 293 mm
Y axis travel: ±65 mm
Z axis travel: 830 mm
C axis: 0.001 degree

Control: FANUC i Plus
Cutting hours: 432

Bar capacity: 102 mm
Swing: 850 mm
Swing over the cross-slide: 670 mm

Spindle speed: 2800 rpm
Spindle motor power: 22/18.5 kW
Spindle nose: A2-11

Milling motor power: 7.5/5.5 kW
Milling RPM: 5000 rpm
Rapid feedrates (X/Y/Z): 30 × 30 × 10 m/min

Chuck size: 12" (315 mm)
Boring bar holder diameter: 50 mm
Tool size: 25 × 25 mm
Turret positions: 12 station

Machine dimensions: 4819 × 2002 × 2315 mm
Machine weight: 6500 kg
Maximum cutting diameter: 420 mm
Maximum cutting length: 765 mm
Standard cutting diameter: 305 mm
Tailstock quill diameter: 100 mm
Tailstock taper: MT #5
