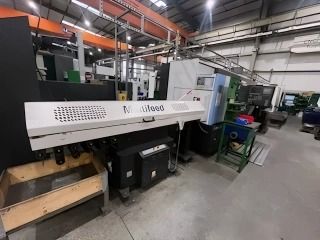

Doosan FANUC i Series 3500 rpm PUMA 2600SY 4 Axis

x-axis travel 260 mm
y-axis travel ±52.5 mm
z-axis travel 830 mm
C axis 0.001°

sub spindle C axis 0.001°
control FANUC i Series
tool setter
coolant system
interlocked guards
low voltage light
magazine barfeed
parts catcher
parts conveyor
swarf conveyor
bar capacity 76 mm
swing 780 mm

swing over carriage 630 mm
spindle speed 3500 rpm
spindle motor power 22 kW
spindle nose A2-8
sub spindle speed 4500 rpm
sub spindle motor 7.5 kW
milling rpm 5000 rpm

rapid feedrate X 30 m/min
rapid feedrate Y 10 m/min
rapid feedrate Z 30 m/min
tool size 25 x 25 mm
tooling configuration BMT65
turret positions 12 station
3-jaw chuck
Y-axis
machine dimensions 6600 x 1863 x 2163 mm
machine weight 6000 kg
