Doosan Fanuc I Series 4500 RPM DN SOLUTIONS LYNX 2100LYB 3 Axis

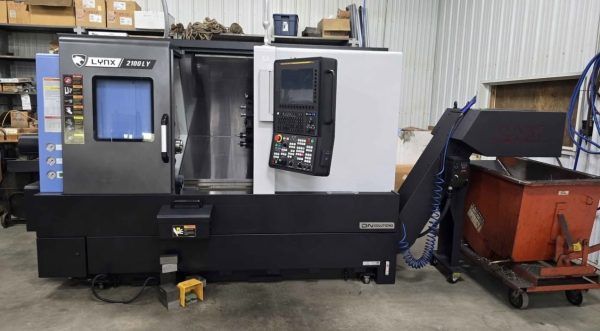

DN SOLUTIONS LYNX 2100LYB
2024

Chuck size 8″
Max turning diameter 11.8″
Max turning length 20″
Distance between centers 24″

X-axis travel 8.1″
Z-axis travel 22″
Y-axis travel 4″

X-axis rapid traverse rate 1181 ipm
Z-axis rapid traverse rate 1417 ipm
Y-axis

Bar capacity 2.6″
Spindle speed 4500 RPM
Spindle motor 20 HP
Turret 12 stations
Rotary tool speed 6000 RPM
Rotary tool power 5 HP
Machine weight 8600 lbs
Machine dimensions 113.4″ x 67.5″ x 76″
Control Fanuc I Series

Live tooling
Tailstock
Parts catcher
3-jaw chuck
Extended coolant collector
LNS chip conveyor
Bar feed interface
