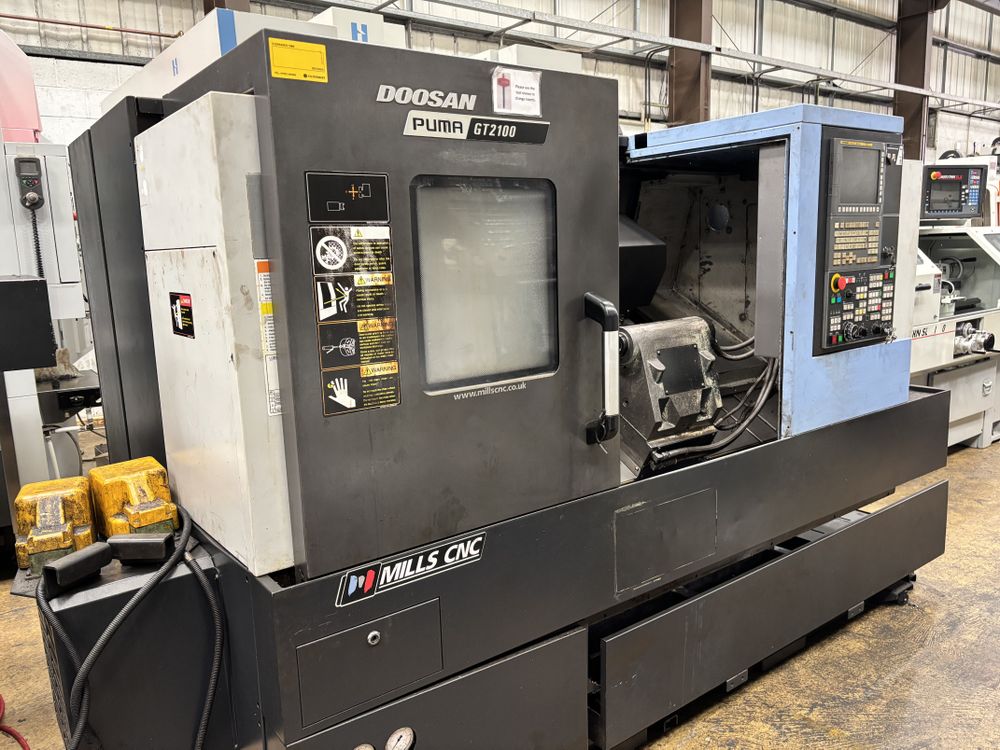

Doosan FANUC I SERIES 4500 rpm PUMA GT2100 2 Axis

DOOSAN PUMA GT2100
2016

Bar capacity 65 mm
Chuck size 200 mm (8")
Control FANUC I SERIES
Machine dimensions 2940 x 1632 x 1700 mm
Machine weight 3700 kg
Maximum cutting diameter 390 mm
Maximum cutting length 562 mm
Rapid feedrates XZ: 24 x 30 m/min
Spindle motor power 18.5/15 kW
Spindle nose A2-6
Spindle speed 4500 rpm
Swing 600 mm
Swing over the cross-slide 390 mm
Tailstock body travel 580 mm
Tailstock quill diameter 80 mm
Tailstock quill stroke 80 mm
Tailstock taper MT #4
Tool size 25 x 25 mm
Turret positions 12 station
X axis travel 230 mm
Z axis travel 580 mm
3 jaw chuck
Coolant system
Interlocked guards
Low volt light
Manuals included
Parts catcher
Swarf conveyor
Tailstock
Tool setter
Tooling included
USB port
