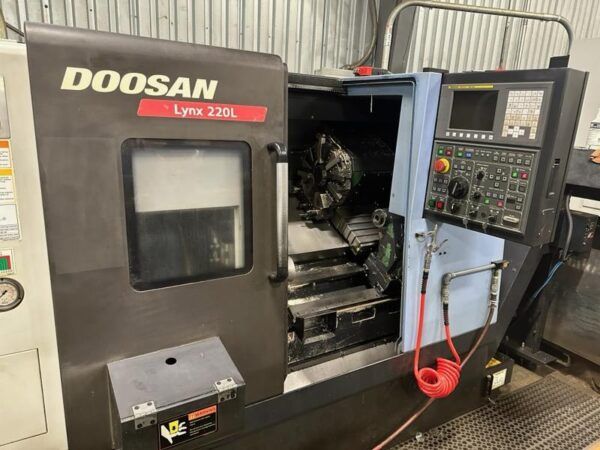

Doosan Fanuc “i” Series CNC Control 4000 RPM Lynx 220LC 3 Axis

X-Axis Travel 6.9 in
Z-Axis Travel 21.7 in
Rapid Traverse X/Z 1181/1417 IPM
Fanuc “i” Series CNC Control
Tool Setter
Parts Catcher
Tailstock
Chip Conveyor
Max Bar Work Diameter 2.625 in
Swing Over Bed 20.08 in
Swing Over Saddle 11.42 in
Max Turning Diameter 12.6 in
Max Turning Length 20.7 in
Spindle Speed 4000 RPM
Spindle Nose A2-6
Spindle Bore 2.99 in
Main Spindle Motor 20 HP
8 in 3-Jaw Hydraulic Chuck
Number of Tools 12
OD Tool Size 1 in × 1 in
Boring Bar Diameter 1.5 in
12 Position Turret
Approx Machine Weight 7,716 lb
All Available Toolholders and Manuals
