Doosan FANUC OI-TC (10.4" Color Monitor) 3,500 RPM PUMA GT 2100B 3 Axis

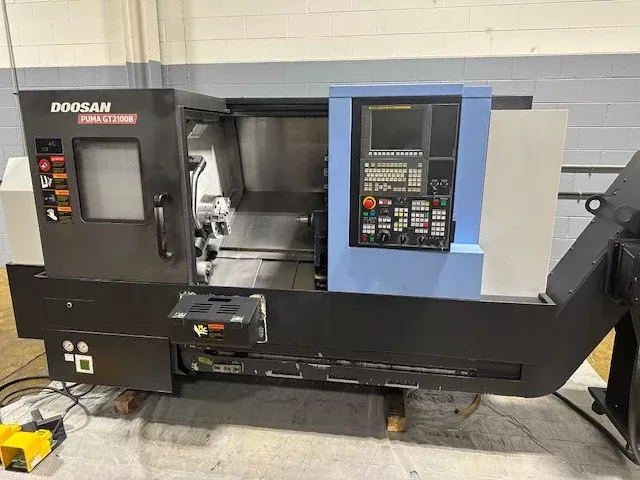

DOOSAN PUMA GT 2100B
2015

Dimensions & Capacity:
Swing Over Bed: 23.6"
Max Turning Diameter: 15.4"
Machining Length: 21.7"
Distance Between Centers: 23"
Chuck Size: 10"

Spindle:
Spindle Nose: A2-8
Spindle Bore Diameter: 3.6"
Spindle Bar Capacity: 3.2"
Max Spindle Speed: 3,500 RPM
Spindle Horsepower: 25 hp

Travel & Axis:
X-Axis Travel: 9.1"
Z-Axis Travel: 22.8"
C-Axis Travel: 0° (not equipped)
Number of Axes: 2

Turret & Tooling:
Turret Stations: 12
Tool Offsets: 64 pairs
Programmable Tailstock: Yes
Tailstock Quill Diameter: 3.1"
Tailstock Travel: 22.8"
Tailstock Taper: MT 4
Bar Capacity: 3.2"

Features & Extras:
CNC Control: FANUC OI-TC (10.4" Color Monitor)
Auto Parts Catcher
Chip Conveyor
Barfeed Interface
Doosan Tool Load Monitoring System
Macro Executer
High Pressure Coolant Interface (CoolJet not included)
Tool Presetter
Live Center MT 4
Weight: 8,140 lbs
