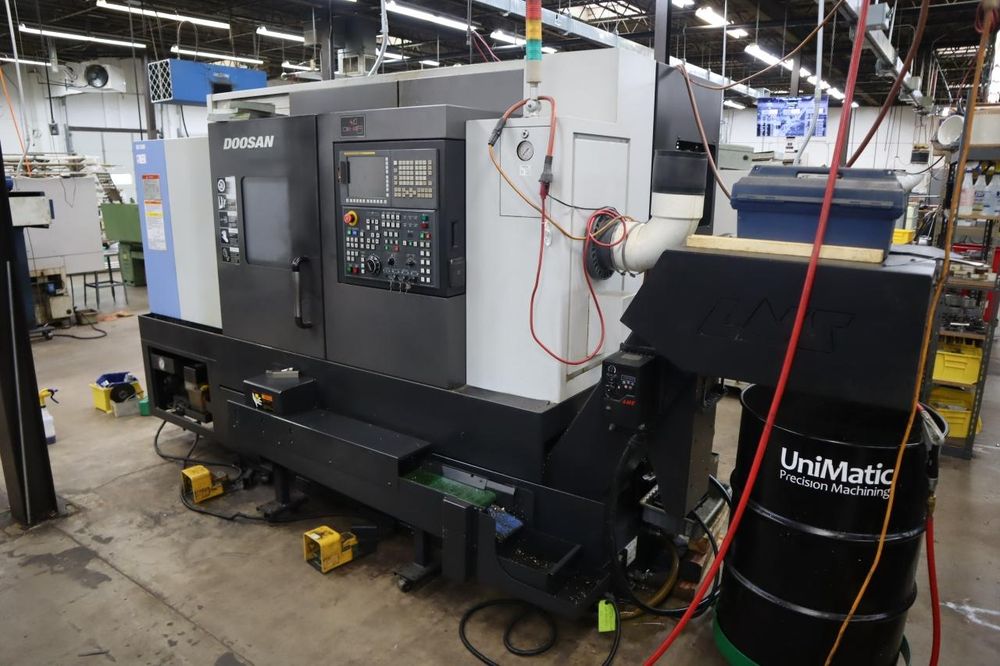

Doosan Fanuc Series 31i-Model S CNC Control 4500 RPM PUMA 2100SY 2 Axis

Max Turning Diameter 16.0"
Max Turning Length 20.5"
Sub-Spindle Travel 23.2"
Turret Travels X/Z 10.2" x 23.2"
Hole Through Spindle 3.0"
Main Spindle Orientation Full C-Axis (.001 Degree)
Sub-Spindle Orientation Full C-Axis (.001 Degree)
Control Fanuc 31i - Model A CNC
Main Bar Capacity 2.6"
Sub-Spindle Bar Capacity 2.45"
Main Spindle Speeds 4500 RPM
Sub-Spindle Speeds 4500 RPM
Main Spindle Drive 25 HP
Sub-Spindle Drive 10 HP
Live Tool Drive Motor 7 HP
Spindle Nose A2-6
Main Spindle Chuck Size 8"
Sub-Spindle Chuck Size 6"
Live Tool Speeds 4500 RPM
Rapid Traverse X/Z/B Axes 1,181 IPM
Rapid Traverse Y Axis 393.7 IPM
Turret Capacity 12 Station Live Milling Capable

Fanuc Series 31i-Model S CNC Control
Samchully MH-208 8" 3-Jaw Main Chuck
12 Station Turret with Live Milling
Y-Axis Programmable Turret
Sub-Spindle
C-Axis Main and Sub-Spindles
Samchully MH-206 6" 3-Jaw Chuck on Sub-Spindle
Auto Tool Presetter
Parts Catcher and Parts Conveyor
Chip Conveyor
High Pressure Coolant System
Complement of Static Boring Bars and Turret Tool Holders
(3) Eppinger Radial Live Tools
RS232 Port
Compact Flash
Ethernet
Main Unit Approx Weight 12,015 lbs
Main Unit Dimensions Length 130.3" Width 73.3" Height 85.2"
Components LNS Chip Conveyor Length 124.0" Width 24.0" Height 56.0"
Coolant Pumps and Tank Length 53.0" Width 21.0" Height 21.0"
Machine Dimensions on Floor Length 160.0" Width 78.0" Height 85.0"
