Doosan FANUC Series I CNC Control 2,000 RPM PUMA 4100LB 2 Axis

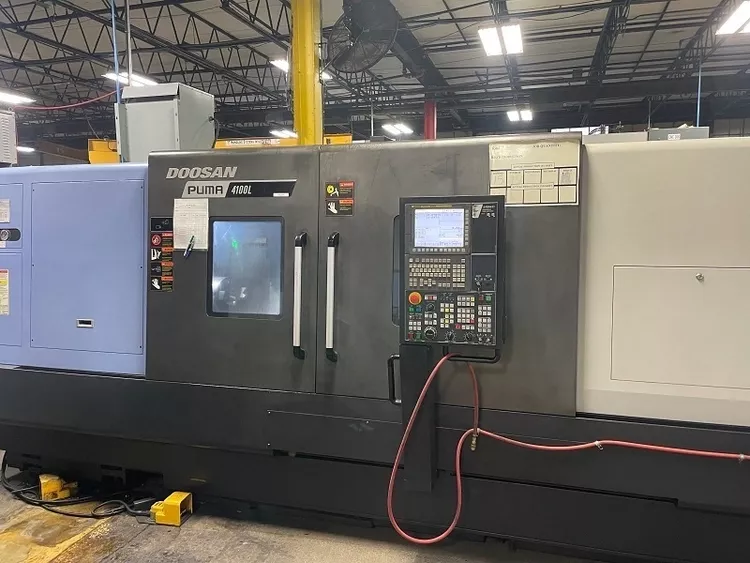

DOOSAN PUMA 4100LB
2017

Swing Over Bed: 31.1"
Machining Length: 82.4"
Distance Between Centers: 84.7"
Chuck Size: 15"
Spindle Nose: A2-11
Spindle Bar Capacity: 4.6"
Turning Diameter: 21.6"
Spindle Speed: 2,000 RPM
Spindle Horsepower: 50 HP
Spindle Bore Diameter: 5.2"
Rapid Traverse X-Axis: 630 in/min
Rapid Traverse Z-Axis: 787 in/min
Gear Ranges: 2
Turret Stations: 10
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT 5
Tailstock Quill Travel: 4.7"
Tailstock Travel: 79.4"
Programmable Tailstock: Yes
Number of Axes: 3
Sub Spindle: No
Control: FANUC Series I CNC
Machine Dimensions: 227" x 90" x 90"
Machine Weight: 25,130 lbs

FANUC Series I CNC Control
Doosan EZ Guide I Conversational Programming
Tool Presetter
Chip Conveyor
SMW SLU-4-ZS Hydraulic Steady Rest (9.68" capacity)
Programmable Tailstock
