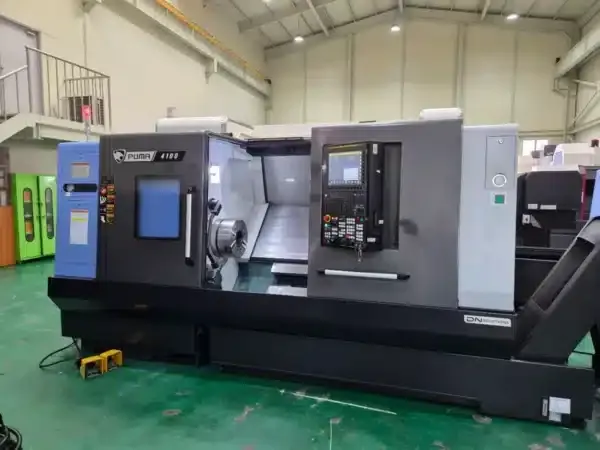

Doosan FANUC Series i Plus 2000 RPM DN SOLUTIONS PUMA 4100B 2 Axis

Swing over bed 31.1 in
Machining length 41.1 in
Distance between centers 43.5 in
Turning diameter 22 in
X-axis travel 13.9 in
Z-axis travel 43.5 in
Rapid traverse X 707 in/min
Rapid traverse Z 787 in/min

2-axis CNC turning center
Control FANUC Series i Plus
Doosan EZ Guide conversational programming
Custom macro function
Tool load monitoring
Embedded Ethernet
USB interface

Swing over bed 31.1 in
Chuck size 15 in
Spindle nose A2-11
Spindle bore 5.2 in
Bar capacity 4.6 in
Spindle speed 2000 RPM
Spindle power 50 hp
Gear ranges 2
Turret 10 stations
Tailstock programmable
Tailstock quill diameter 4.7 in
Tailstock taper MT6
Tailstock quill travel 4.7 in
Tailstock travel 39.4 in

Chip conveyor included
Spindle chiller included
Tool setter included
Cutting hours 425 h
