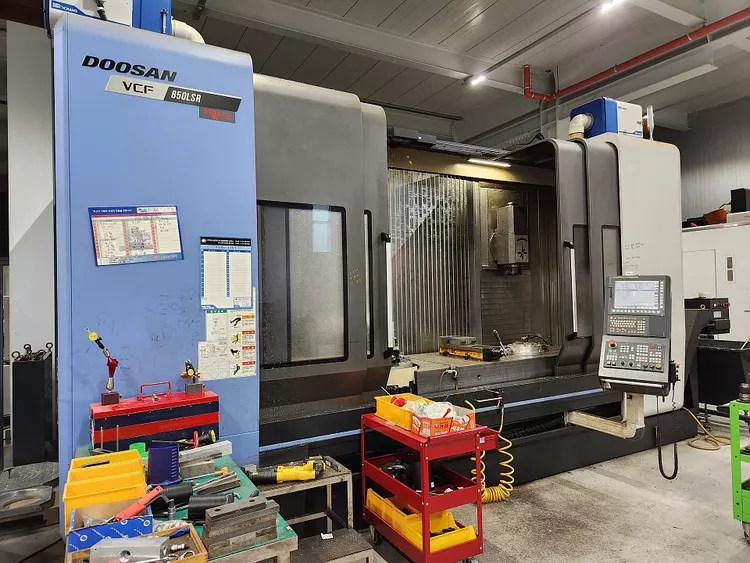

Doosan VCF 850LSRII 5 Axis

DOOSAN VCF 850LSRII
2015

Number of tables/pallets: 1
Table size: 137.8" x 34.3"
Maximum table load: 7716 lbs
Integrated NC rotary table diameter: 31.5"
Spindle nose to table distance: -1.6" to 29.9"
Spindle speed: 12000 RPM
Spindle taper: CAT 40
Spindle power: 30 HP
X-axis travel: 118.11"
Y-axis travel: 33.56"
Z-axis travel: 31.5"
A-axis travel: 0
B-axis travel: ±110°
C-axis indexing: 0.001°
Rapid traverse (X/Y/Z): 1574 IPM
Cutting feedrate: 787.4 IPM
Vertical turning table quantity: 0
Vertical turning table speed: 0
Vertical turning table power: 0
Tool changer capacity: 30
Max tool diameter: 3.1" / 5.1"
Max tool length: 11.8"
Max tool weight: 17.6 lbs
Machine weight: 52,910 lbs

FANUC 31i-B5 control
Coolant through spindle
TS27R Renishaw tool measurement probe
Flushing coolant
Automatic power off
Doosan tool load monitoring
AICCII high-speed processing (200-block lookahead)
BIG PLUS spindle
Chip conveyor
Portable manual pulse generator
