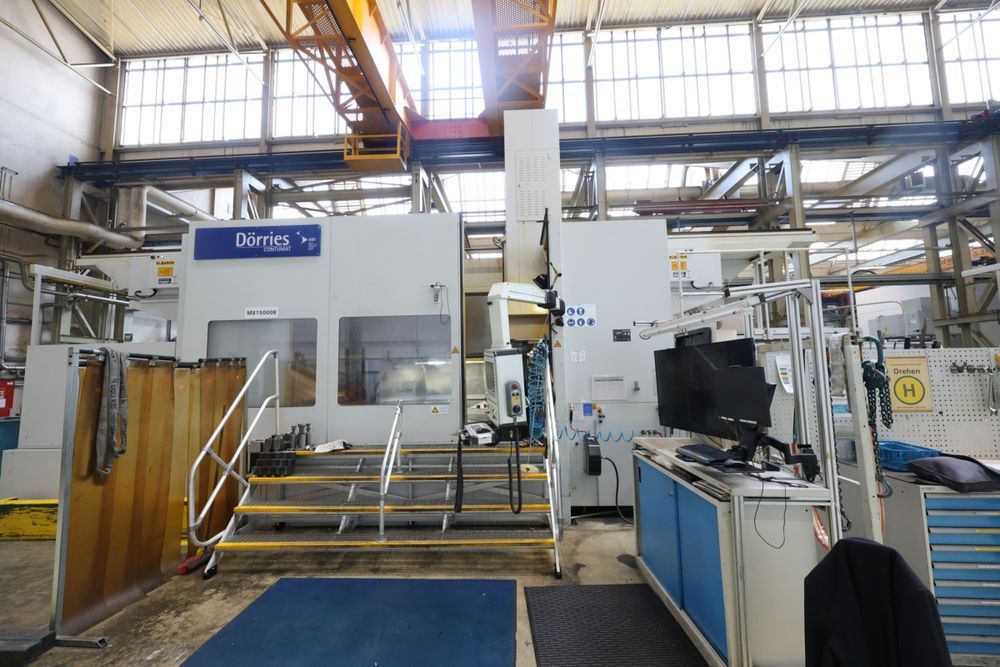

Dorries Scharmann VCE 2800/250 MC Max turning diameter: 2800 mm

Ref : 2736247-3-AW

Condition : Used

Manufacturer : Dorries Scharmann

Model : VCE 2800/250 MC

Short Description : Max turning diameter: 2800 mm

Year(s) : 2009

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 1450 mm
Z-axis travel: 1500 mm
Table diameter: 2500 mm
Max turning diameter: 2800 mm
Max turning length: 1200 mm
Max workpiece weight: 25000 kg
Crossbeam adjustment steps: 800 (100) mm
Tool cross-section: 250 x 250 mm
Tool holder diameter: 340 mm
Tool holder type: Deckel Capto C6
Milling head type: S1500
Tool holder taper: ISO 50
Tool magazine
Two delivery stations
Protective device
Coolant system
Chip conveyor
Tool process monitoring system
Suitable for CBN cutting materials
