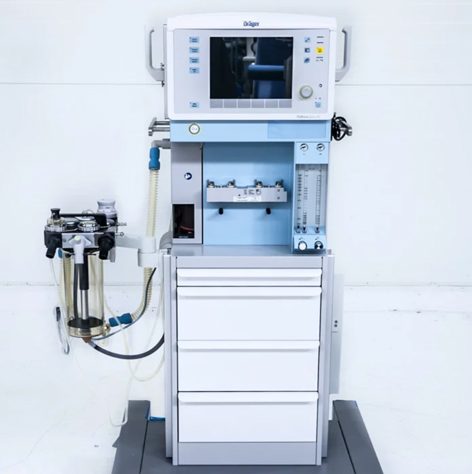

Drager Fabius plus XL

Come with warranty 12 month

Features:
The Fabius plus XL
Designed to provide quality therapy and sophisticated monitoring capabilities in
a compact yet versatile package, the Fabius plus XL incorporates proven German
engineering. With a range of expansion options to choose from, it lets you enjoy the
advantages of Dräger quality today while maintaining flexibility for the future.

Flexible scalability
The Dräger Fabius plus XL lets you flexibly expand its capabilities by
adding additional monitors, gas cylinders and other accessories such as infusion pumps.

Powerful yet affordable
In addition to the high-quality ventilation capabilities made possible by
its highly accurate, electronically driven piston ventilator, the Fabius plus XL now
includes a number of features which help you maximize your therapeutic potential
and improve patient safety.

Improved ergonomics
Carefully positioned mounting rails let you mount additional equipment
within easy reach. The optional higher trolley lets you work comfortably in
a standing position. An enhanced cable management concept combined
with an integrated power outlet mean less cable clutter.

A clear view
The Fabius plus XL organizes and displays information clearly and logically on
a 10.5 inch color display, providing an excellent overview from
a wide range of viewing angles.

The space you need
Three large drawers let you store consumables where they are needed – close by.
The top storage drawer can be converted to install your choice of Scio gas
measurement module.

Included with the Draer Vapor 2000 vaporizer
Available ventilation modes: E-vent Electronically controlled,
electrically driven ventilator / Volume controlled ventilation / Manual ventilation

Specification:
- Ventilation Modes: Man/Spon, CPAP in Man/Spon mode, volume-controlled ventilation
(VC), synchronized VC + PS, pressure-controlled ventilation (PC), pressure support (PS).
- Patient Categories: Adults, pediatric, neonates.
- Breathing System: Easily positioned, mountable on the left or right side of the arm.
- Fresh Gas Mixer: Mechanical mixer with flowmeters (manual needle valves).
- Gases: O₂, Air, N₂O.
- Emergency Power Supply: Built-in battery provides approximately 120 minutes
of operation in case of a power failure.
- Menu in English
- Spontaneous breathing / Pressure controlled ventilation (optional) / Pressure support
(optional) / SIMV/PS (optional)
- Fresh gas flow rate range 0.0 to 12.0 L/min
- O2 flush max 75 l/min at 87 psi (6 kPa x 100)
- Respiratory rate (frequency) 4 to 60 beats per minute (1/min)
- Positive end-expiratory pressure (PEEP) 0 to 20 cmH2O (hPa)
- Pressure limitation (Pmax) 15 to 70 cm H2O (hPa)
- Tidal volume (Vt) 20 to 1400 ml with volume control 20 to 1100 ml in SIMV/PS
- Inspiratory pause (Hint:Ti) 0 to 50%
- SIMV Inspiratory time 0.3 – 4.0 sec
- Inspiratory pressure (Pinsp) PEEP + 5 to 65 cm H2O (hPa)
- Inspiratory flow (InspFlow) 10 to 75 L/min in volume and
pressure control modes 10 to 85 L/min in pressure support and SIMV/PS modes
- Pressure Support Level (PPS) PEEP +3 to 20 cmH2O (hPa)
- Power supply: 100-240V / 50-60Hz / 4A
