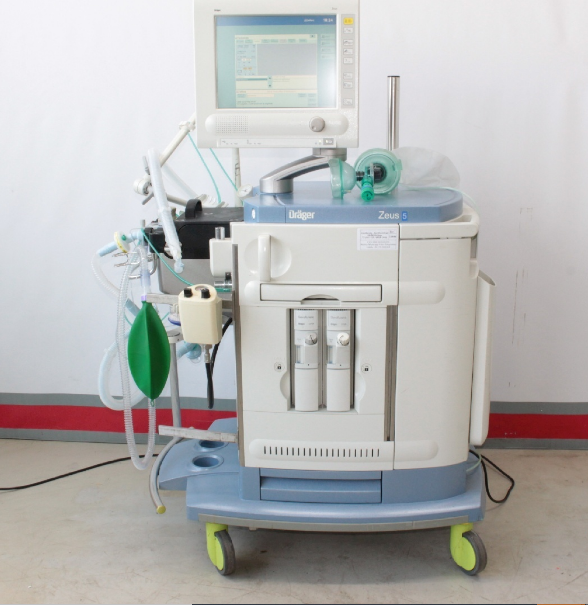

Drager Zeus

Anesthesiology Equipment DRÄGER ZEUS SW 3.08
Breathing System with APL Valve
2 DIVA Dosing Modules Sevoflurane - Desflurane
Drägersorb CLIC Replacement Soda Lime - Prevents Skin Contact
DRÄGER Infinity C500 Touchscreen Monitor
Dräger VentStar® Anesthesia Breathing Circuits
With Swivel Arm

Technical Details:
Gas Delivery
Operating Modes: Fresh-gas control, auto-control with insp. O2 control
Fresh-gas flow 0.25–18 l/min (fresh-gas control); 0–18 l/min (auto-control); Closed Operating Mode (Uptake) / Fresh-gas flow 0.25–18 l/min
(fresh-gas control); 0–18 l/min (auto-control); Closed system mode (uptake)
O2 control 25–100%; ORC function / O2 control 21–100%
(in fresh-gas control with AIR); Oxygen Ratio Controller
Carrier gases N2O and air
O2 flush > 35 l/min
O2 safety flow 0–12 l/min
Auxiliary O2 flow tube 0–16 l/min (e.g., for regional anesthesia)

Anesthetic agent delivery DIVA (Direct Injection of Volatile Agents):
Operating mode with m2 DIVA modules: Fresh gas dosing, auto-dosing
with expiratory flow. Anesthetic control ISO, SEV, DES / Mode of
operation of DIVA modules: Fresh-gas control, auto control with
expiratory agent control (2 plug-in slots for ISO, SEV, DES)
Filling volume 315 ml / Max. filling volume 315 ml
Dosing range: Fresh-gas dosing ISO: 0–5 kPa; SEV: 0–8 kPa; DES: 0–18 kPa /
Delivery range: Fresh-gas control (fresh-gas settings)
ISO: 0–5 kPa; SEV: 0–8 kPa; DES: 0–18 kPa
Dosing range: Auto dosing ISO: 0–2.5 kPa; SEV: 0–5 kPa; DES: 0–12 kPa / Delivery range: Auto control (expiratory agent settings) ISO: 0–2.5 kPa;
SEV: 0–5 kPa; DES: 0–12 kPa
