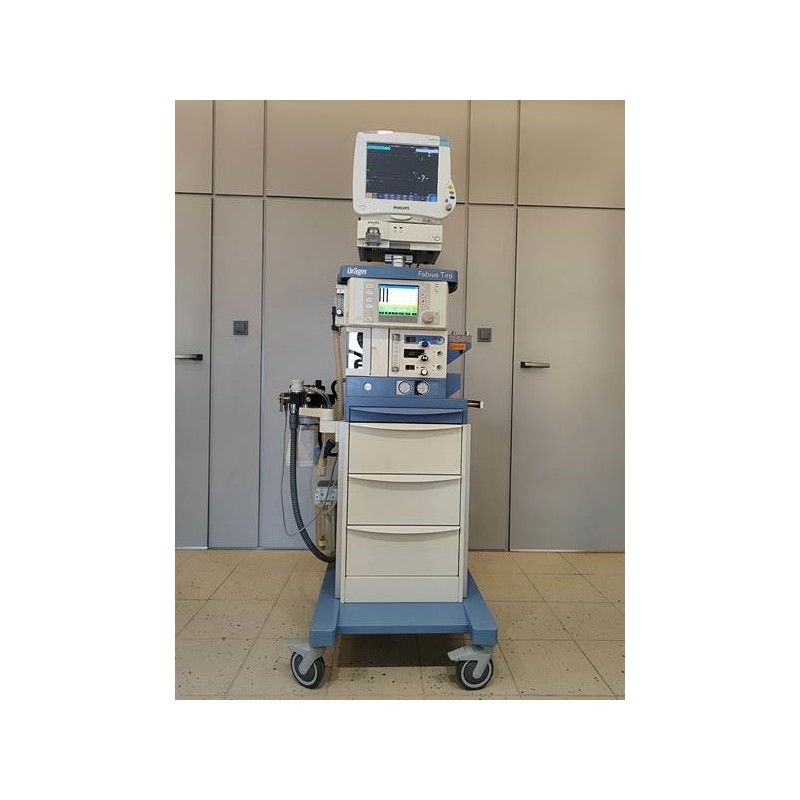

Drager Fabius Tiro

Anesthesia machine with Philips cardiac monitor
The Dräger Fabius® Tiro is a compact anesthesia unit designed for
use in confined spaces such as small operating rooms or intensive care units.
It combines modern ventilation modes with an ergonomic design
while offering flexibility and functionality.

Key Features:
Advanced Ventilation:
The Fabius Tiro is equipped with a precise, electronically controlled
E-Vent piston ventilator that does not require driving gas and
delivers performance comparable to intensive care ventilators.
This allows for a wide range of ventilation modes,
including volume-controlled ventilation (VC), pressure-controlled ventilation (PC),
pressure-supported modes (PS), and SIMV/PS.

Compact and Ergonomic Design:
Thanks to its small size and well-thought-out construction, the Fabius Tiro is
ideal for small spaces without compromising on functionality or flexibility.
Mounting options on a trolley or wall allow adaptation to specific facility needs.

Intuitive User Interface:
The device features Dräger’s standardized user interface, known from other devices of
this brand, making operation easier and reducing staff training time.
Its ergonomic design supports efficient daily use.

Reliability:
The Fabius Tiro ensures full ventilation functionality even in case of
a power failure – a crucial factor in critical clinical situations.

Technical Specifications:
Ventilation Modes:
Man/Spon, CPAP in Man/Spon mode, volume-controlled ventilation (VC),
synchronized VC + PS, pressure-controlled ventilation (PC), pressure support (PS),
SIMV/PS.

Patient Categories:
Adults, pediatric, neonates.

Breathing System:
Easily positioned, mountable on the left or right side of the arm.

Fresh Gas Mixer:
Mechanical mixer with flowmeters (manual needle valves).

Gases:
O₂, Air, N₂O.

Emergency Power Supply:
Built-in battery provides approximately 120 minutes of operation in
case of a power failure.
