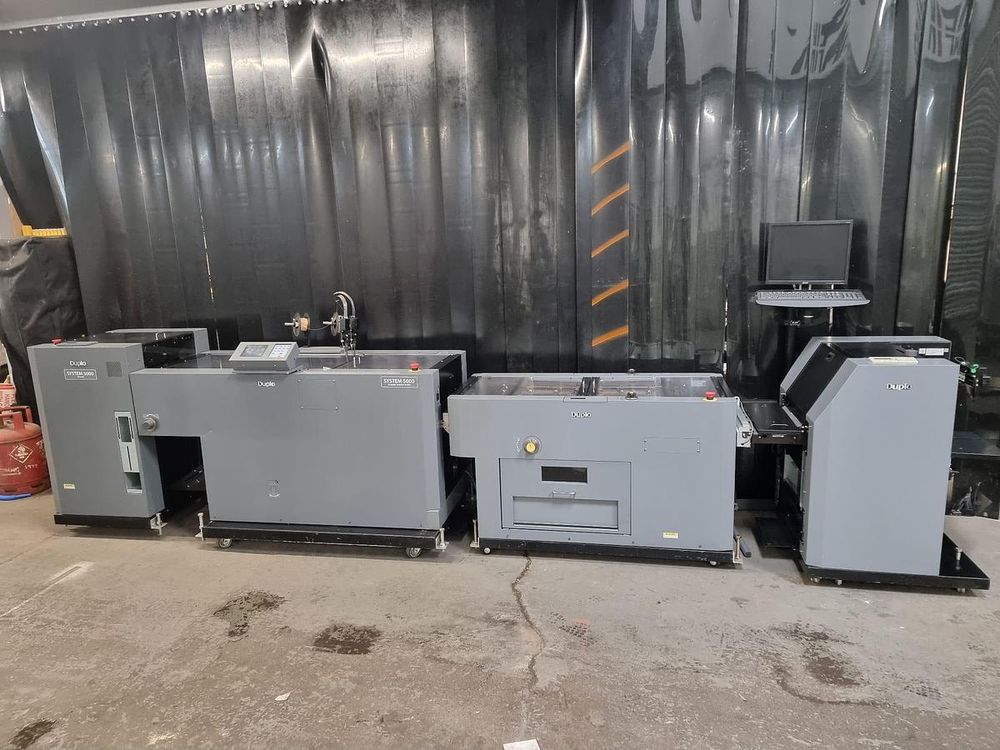

Duplo 5000

Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17"
Paper Weight: 14-42 lbs
Speed: Up to 2,000 sets per hour
Error Detection: Bin Empty
Double Feed
Mis-feed,
Cover Open
Paper Jam
Downstream finisher error
Dimensions (LxWxH): 44" x 30" x 40"
Weight (lbs): 300
1 x Duplo System 5000 trimmer
1 x Duplo System 5000 Dynamic Bookletmaker

Combines litho and digital work
Four finishing styles
High performance paper handling
Automatic set up of bookletmaker
Creasing of selected pages to avoid cracking
Camera system to compensate for image drift
Clear PC-based set up interface

Paper Size:
Length: 170 to 500 mm - Width: 120 to 356 mm

Paper Type:
Fine Quality Paper: 80.0 to 300.0 gsm
Art/Coated Paper: 84.9 to 300.0 gsm
Fine Quality Paper: 60.0 to 127.9 gsm
Art/Coated Paper: 84.9 to 157.0 gsm

Slitting Range: (Both edges are slit)
Front edge: 4 to 25 mm
Rear edge: 4 to 25 mm

Cutting Range:
Lead edge: 4 to 25 mm
Tail edge: 4 to 25 mm

Maximum Process Speed:
Slitter: 60 sheets/min
Cutter: 25 sheets/min
Creaser: 60 sheets/min
A3: 150 sheets/min
A4: 200 sheets/min

Power Supply: 120V - 240V, 50Hz/60Hz
Power Consumption -120W, 1.4 - 0.6A
