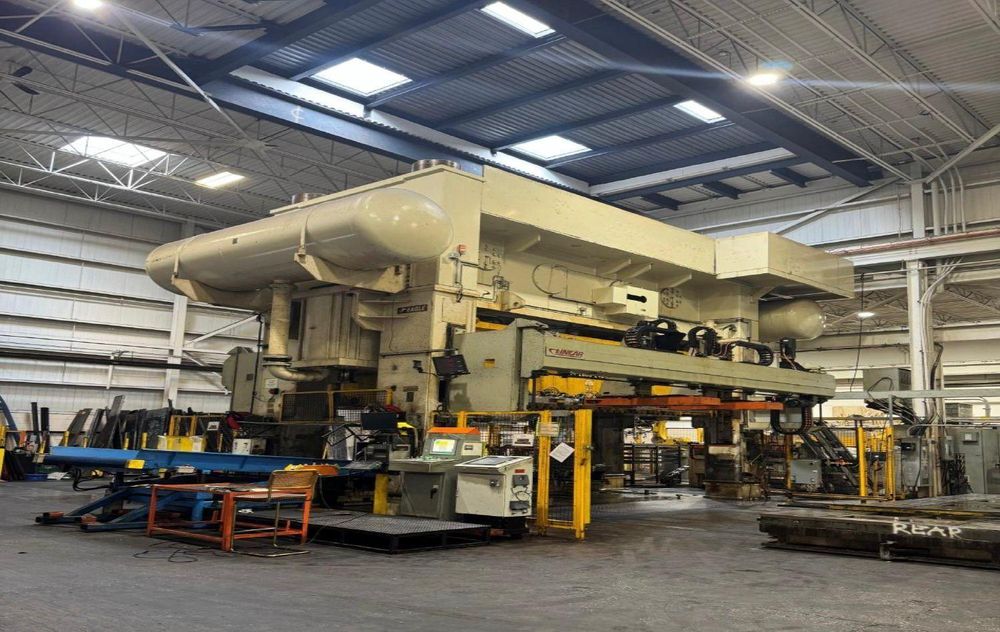

Eagle SE4-2000-240-84 2000 T

Press Tonnage 2000
Front to Back 84"
Left to Right 240"
Shut Height Max 44" Min 32" with Riser
Shut Height Max 62" Min 50" without Riser
Stroke 28"
SPM 8-16
Window Size 84" x 82"
Bolster Front to Back 84"
Bolster Left to Right 240"
Linear Transfer Min Between Rails (Out Position) 130"
Linear Transfer Min Between Rails (In Position) 50"
Linear Transfer Min Transfer with 0.00" Offset 59"
Linear Transfer Maximum Clamp Stroke per Side 40"
Linear Transfer Maximum Lift 30"
Feeder Max Material Thickness 0.235"
Feeder Min Material Thickness 0.030"
Feeder Max Material Thickness 72" @ 1200 MPA 0.125"
Feeder Max Material Width 72"
Feeder Min Material Width 6"
Feeder Max SPM 25 @ 48" of Progression
Straightener Max Material Thickness 0.235"
Straightener Min Material Thickness 0.030"
Straightener Max Material Thickness 72" @ 1200 MPA 0.125"
Straightener Max Material Width 72"
Straightener Min Material Width 6"
Straightener Max SPM 25 @ 48" of Progression
Uncoiler Max Material Thickness 0.235"
Uncoiler Min Material Thickness 0.030"
Uncoiler Max Material Thickness 72" @ 1200 MPA 0.125"
Uncoiler Max Material Width 72"
Uncoiler Min Material Width 6"
Uncoiler Max SPM 25 @ 48" of Progression
Uncoiler Max Coil Weight 50,000 lbs
Uncoiler Max Coil OD 72"
Uncoiler Max Coil ID 24.5"
Uncoiler Min Coil ID 19.5"
Fanuc Robotic De-Stacker Two Bin Towers
Fanuc Robotic De-Stacker Nesting Table
Fanuc Robotic De-Stacker One Robot de-stacking blanks to nesting table
Fanuc Robotic De-Stacker One Robot moving blanks to blank conveyor
Fanuc Robotic De-Stacker Robot Capacity 200 lbs @ 10 SPM
Titan Blank Conveyor Max Weight 200 lbs
Titan Blank Conveyor Max Width 60"
Titan Blank Conveyor Min Width 24"
Double Rolling Bolster
Linear Transfer System
Colt Feedline
Fanuc Robotic De-Stacker/Blank Conveyor
