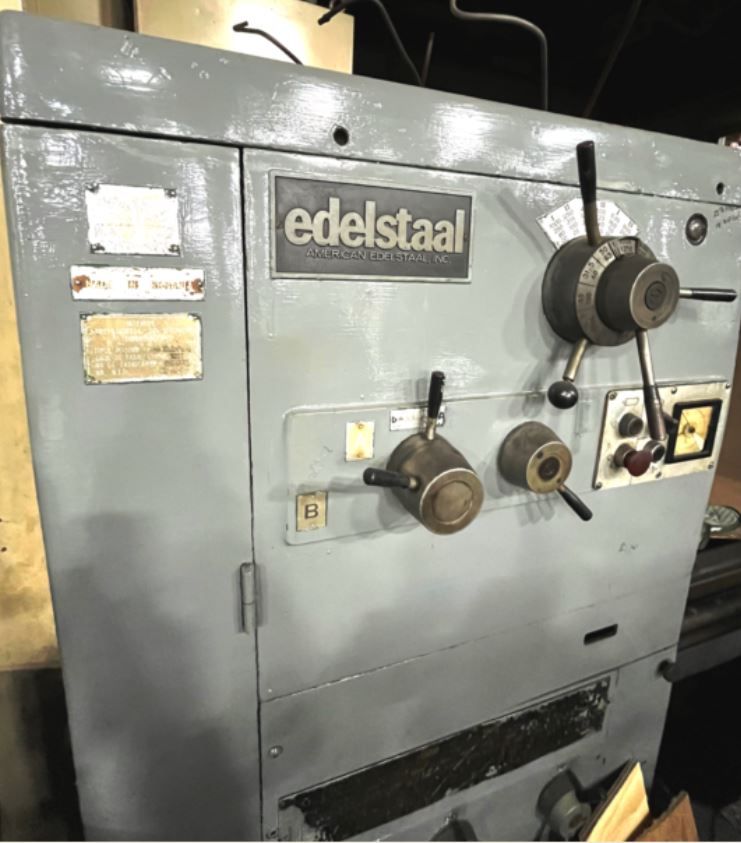

Edelstaal HEAVY DUTY ENGINE LATHE 1250 rpm 52" X 200"

X-axis travel 120 in
Y-axis travel 60 in
Z-axis travel 3.9 in
Swing over bed 52 in
Swing over cross slide 36 in
Swing in gap 61.5 in
Distance between centers 200 in
Spindle nose D1-11 camlock
Spindle bore 4-1/8 in
Spindle speed range 8–1250 rpm
Longitudinal feed range 0.0024–0.56 ipr
Cross feed range 0.0012–0.28 ipr
Rapid traverse longitudinal 150 ipm
Rapid traverse cross 75 ipm
English threading range 1/4–80 TPI
Metric threading range 1–176 mm
Diametral threading range 2.5–64
Module threading range 0.5–80
Cross slide travel 19-11/16 in
Top slide travel 17-5/16 in
Tailstock spindle travel 12-3/4 in
Tailstock spindle taper #6 MT
Main motor power 30 HP
3-phase 60 Hz power
Weight approx. 16,750 lb
Raised headstock
Inch/metric threading
Hardened and ground bed ways
19.5 in 3-jaw chuck
4-way tool post
Tailstock
Taper attachment
4-way rapid traverse
