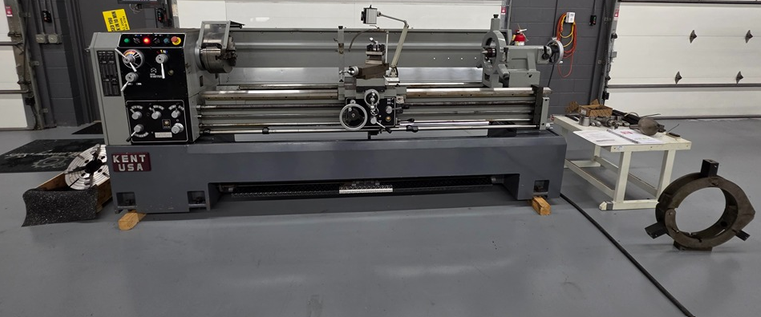

Kent Precision Gap Bed Lathe 1,500 rpm CS-2280

Type: Precision Gap Bed Lathe
Swing over bed: 22"
Swing over cross slide: 14.2"
Swing over gap: 30.7"
Distance between centers: 80"
Bed width: 13.2"
Cross slide travel: 10.2"
Top slide travel: 5"
Spindle bore: 3.15"
Through-hole diameter: 3.2"
Spindle nose: D1-8
Spindle taper: MT5
Spindle speed range: 25–1,500 rpm
Spindle speeds: 12
Standard thread range: 45 (2–72 TPI)
Metric thread range: 0.2–14 mm
Longitudinal feed: 0.0015"–0.04"/rev
Cross feed: 0.00075"–0.02"/rev
Quill travel: 5.9"
Quill diameter: 2.95"
Quill taper: MT5
Main motor: 10 hp
Coolant pump motor: 1/8 hp
2-axis Newall DRO
12" 3-jaw chuck
16" 4-jaw chuck
9.5" steady rest
15" steady rest
Follow rest
Center
Jacobs drill chuck
Machine dimensions: 138" × 39" × 61"
Machine weight: 5,408 lb
