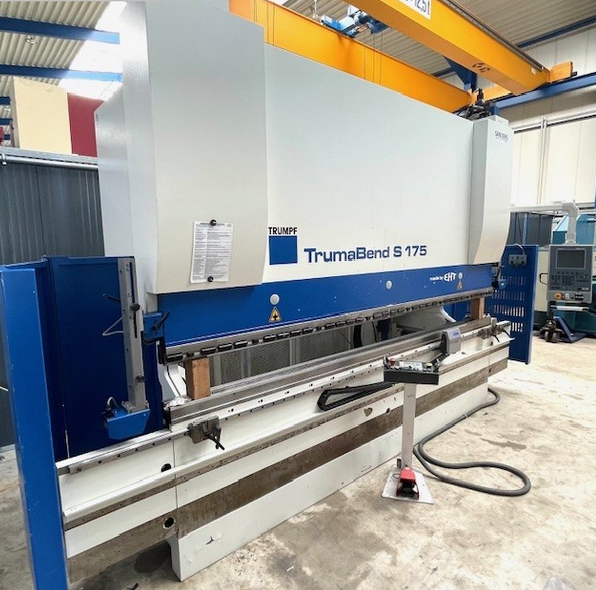

EHT TrumaBend S 175-35 175 T

EHT TrumaBend S 175-35
Year of manufacture 2006

pressure: 175 t
chamfer lenght: 3550 mm
distance between columns: 3050 mm
throat: 405 mm
stroke: 400 mm
ram stroke speed: 140 mm/sec
working feed: 10 mm/sec
return speed: 180 mm/sec
work height max.: 900 mm
oil volume: 350 l
Control: CYBELEC ModEva 10S
total power requirement: 25,5 kW
weight of the machine ca.: 13800 kg
dimensions: 5980 x 3590 x 3220 mm


- DELEM CNC control DA65
- controlled axes: Y1 + Y2 + X + R
- Electric crowning device WILA, controlled via CNC
- Electric back stop, travel range 600 mm
- hydr. Upper tool holder WILA
- hydr. WILA lower tool holder
- front laser protection device FIESSLER
- 5x manually adjustable stop fingers, foldable
- 2x front support arms “sliding system”
- side + back protection device
- Hand and foot controls
- Operation manual
