1/1

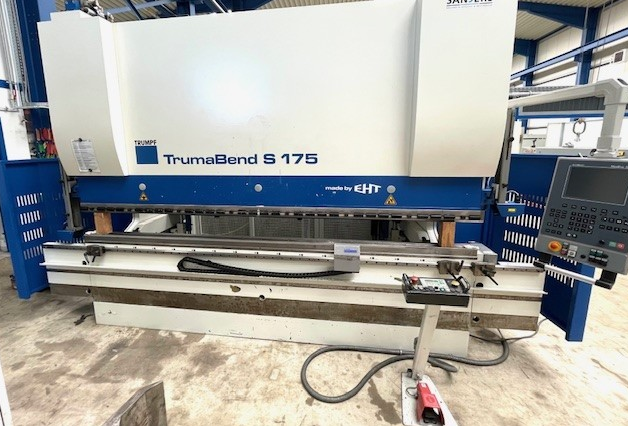

EHT TrumaBend S 175-35 175 t
Ref :
2742408-3-AW
Condition :
Used
Manufacturer :
EHT
Model :
TrumaBend S 175-35
Pressure :
175 t
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force 175 t
Chamfer length 3550 mm
Distance between columns 3050 mm
Throat 405 mm
Stroke 400 mm
Ram stroke speed 140 mm/sec
Working feed 10 mm/sec
Return speed 180 mm/sec
Max. work height 900 mm
Oil volume 350 L
Control CYBELEC ModEva 10S
Total power requirement 25.5 kW
Machine weight 13800 kg
Dimensions 5980 x 3590 x 3220 mm
DELEM CNC control DA65
Controlled axes Y1 + Y2 + X + R
Electric crowning device WILA, CNC controlled
Electric back stop, travel range 600 mm
Hydraulic upper tool holder WILA
Hydraulic lower tool holder WILA
Front laser protection device FIESSLER
5x manually adjustable stop fingers, foldable
2x front support arms sliding system
Side and back protection device
Hand and foot controls
Operation manual
