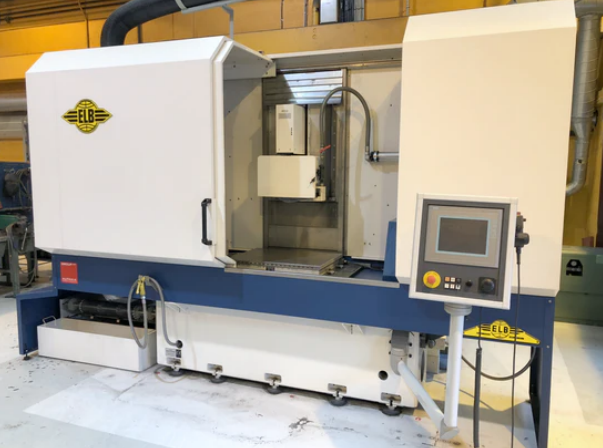

ELB SMART BD10 STC

Table size: 1360 × 590 mm
X-axis travel: 1100 mm
Z-axis travel: 670 mm
Y-axis travel: 400 mm
Maximum table load: 1000 kg
Grinding length: 1000 mm
Grinding width: 600 mm
Grinding height: 640 mm
Grinding wheel diameter: 400 mm
Grinding wheel width: 100 mm
Grinding wheel bore: 127 mm
Grinding wheel speed: 1450 RPM
Table speed: 2–30 m/min (stepless)
Automatic cross feed: up to 2000 mm/min
Automatic vertical feed: up to 1500 mm/min
Vertical rapid traverse: 1 m/min
Control: ELB STC Touch Screen
Grinding spindle motor: 10 kW
Total power: 30 kW
Power supply: 3 × 400 V, 50 Hz
Noise level: 75 dB(A)
Machine weight: 6900 kg
Machine dimensions: 3550 × 2410 × 2660 mm
Coolant system
Paper filtration system
Oil mist extractor
Magnetic plate 800 × 600 mm
Redressing device
Profile roll dressing device
Set of grinding wheels
Set of flanges
Electronic handwheel
