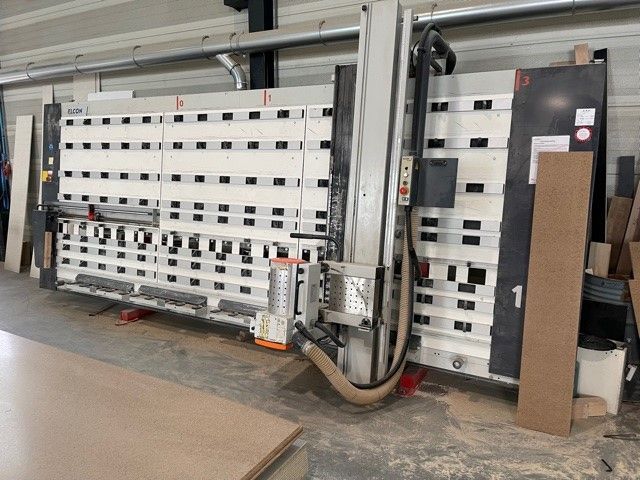

Elcon 185 DSX-L

Vertical panel saw
Features:
- Patented Limpio double-sided dust extraction system, emissions less than 0.5 mg/m3
- Clipboard for
cutting list - Easy ramps
- Accuracy within DIN 875/1 (0.1 mm.)
- Can be positioned anywhere
- Pneumatic plunge-cutting of the saw group
- Pneumatic lock with fine adjustment - Horizontal cutting at working height
- Programming rail for repetitive dimensions
- Repeat stop for strip saws
- Robust, fine-adjustable measuring stop
- Fault diagnosis
- For many different materials
- Cutting depth 80 mm.
- Heavy self-supporting guide modules

Technical data:
Weight in kg 770
Maximum cutting length 3300 mm
Maximum cutting height 1850 mm
Maximum cutting depth 80 mm
Motor (S6) 4 kW
Speed ​​5100 rpm
Saw blade diameter 300 mm
Power connection 400V/3ph/50Hz
Air compressor minimum 6 bar
Extraction connection >1000m³/hour 20m/sec
