Emag VL 3 Max. Swing diameter over bed cover 210 mm

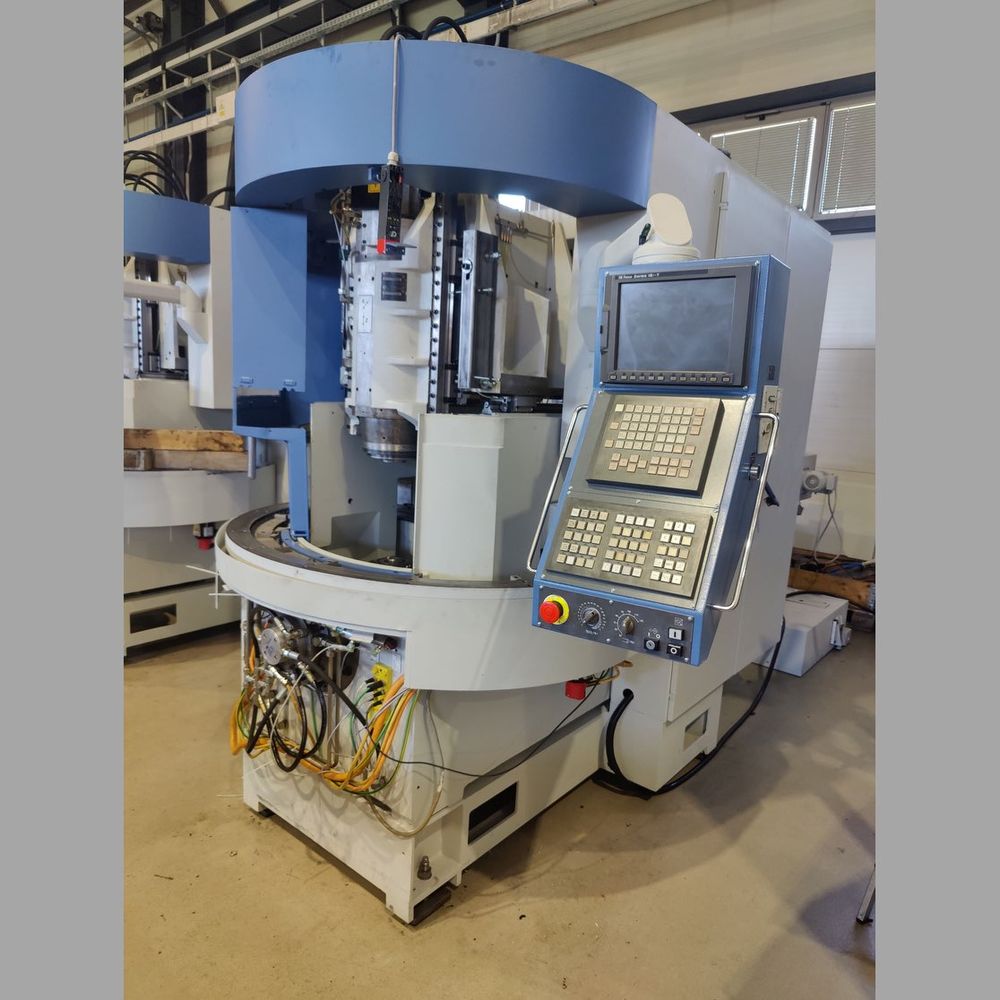

EMAG VL 3
Control: Fanuc 18i TB
New in: 2001/2025
Condition: Retrofitted Machine

Max. Swing diameter over bed cover 210 mm
Max. Clamping chuck diameter 170 mm
Max. speed main spindle 7500 1/min
Max. power main spindle at 10-40/100% duty ratio 25/16 kW
Max. torque main spindle at 10-40/100% duty ratio 134/85 Nm
Spindle diameter in front bearing main spindle 80 mm
Spindle flange size main spindle Gr. 5 (DIN 55026)
Axis at main spindle unit X/Z
Travel in X/Y/Z main spindle unit 400/-/200 mm
Max. rapid traverse in X/Y/Z main spindle unit 60/-/30 m/min
Feed force X/Y/Z main spindle unit 5000/-/5000 N
Linear glass scales main spindle unit X/Z
Solid clamping cylinder at main spindle
Lower turret
No. of stations/driven 12/12
Tool reception in turret VDI 40
Speed tool drive 6000 1/min

FURTHER EQUIPMENT
Fully enclosed work area
Light in working area
Oil-/emulsion mist extraction unit
Slat band chain chip conveyor
Discharge hight chip conveyor 1250 mm
Coolant unit 80 l/min at 7 bar
Loop-type part storage conveyor
Max. workpiece diameter (27 workpieces with 30-85 mm or 18 workpieces with 30-130 mm) mm
Max. workpiece length 100 mm
Automatic central oil lubrication

GENERAL TECHNICAL DATA
Operating voltage 400/50 V/Hz
Total power requirement 28 kVA
Machine dimensions (LxWxH) approx. 2500x1900x2300 mm
Space requirement of the whole equipement (LxWxH) approx. 3600x1900x2300 mm
Machine weight approx. 5500 kg
