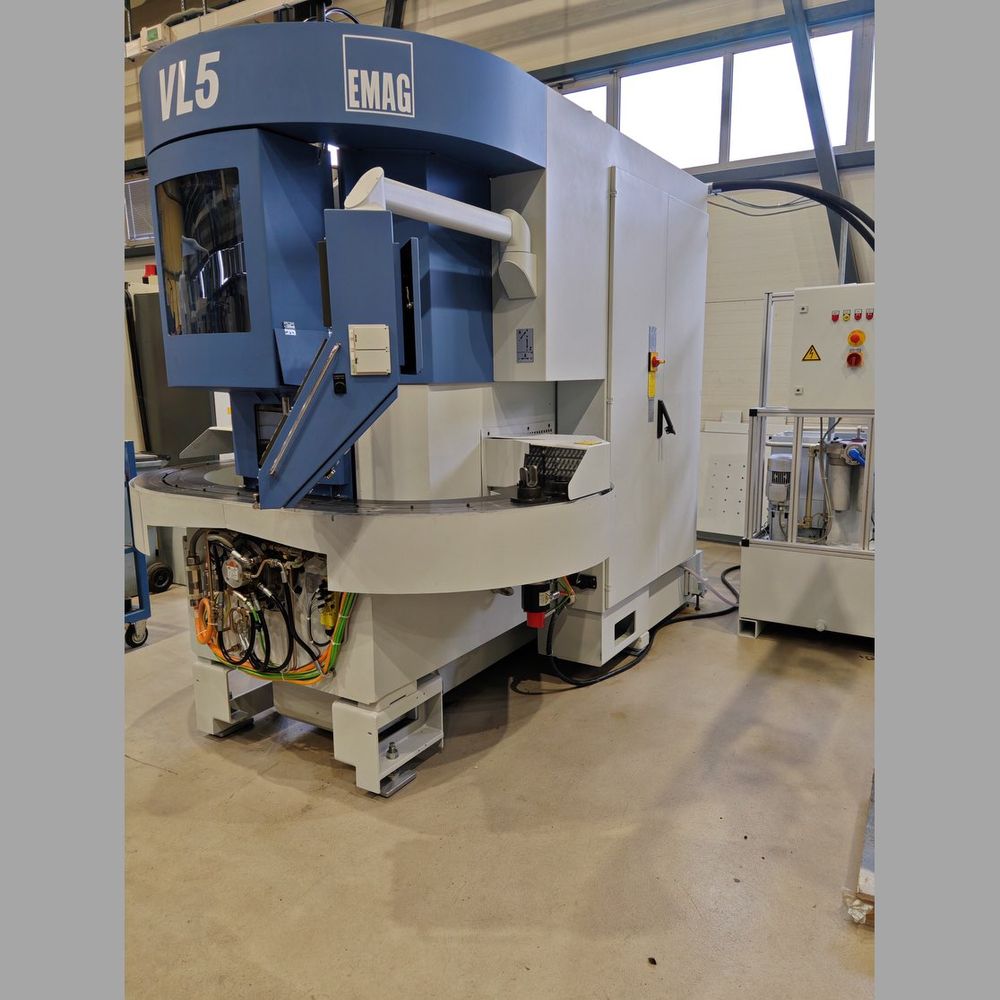

Emag VL 5 Max. turning diameter 250 mm

EMAG VL 5
Control: Fanuc 18i TB
New in: 2005/2025
Condition: Overhauled Machine

Max. turning diameter 250 mm
Max. Swing diameter over bed cover 260 mm
Max. Clamping chuck diameter 260 mm
Max. speed main spindle 4500 1/min
Max. power main spindle at 10-40/100% duty ratio 27/18 kW
Max. torque main spindle at 10-40/100% duty ratio 303/202 Nm
Axis at main spindle unit X/Z
Max. rapid traverse in X/Y/Z main spindle unit 60/-/30 m/min
Linear glass scales main spindle unit X/Z
Solid clamping cylinder at main spindle
Lower turret
No. of stations/driven 12/12
Tool reception in turret VDI 40

FURTHER EQUIPMENT
Fully enclosed work area
Light in working area
Oil-/emulsion mist extraction unit
Slat band chain chip conveyor
Coolant unit with paperband filter
Loop-type part storage conveyor
Warning lamp

GENERAL TECHNICAL DATA
Space requirement of the whole equipement (LxWxH) appox. 3820x2040x2400 mm
Machine weight approx. 6500 kg
