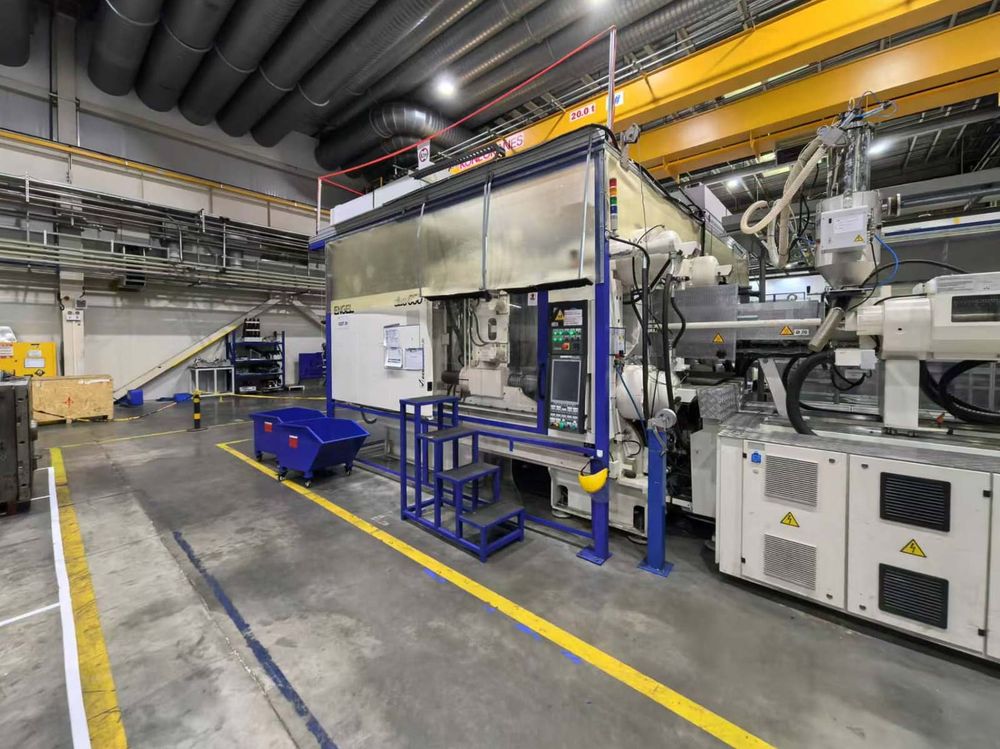

Engel Duo 3550 / 650 650 T
Ref :
2721253-6-GO
Condition :
Used
Manufacturer :
Engel
Model :
Duo 3550 / 650
Capacity :
650 T
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 6.500 kN
Daylight between platens max 1.750 mm
Dimensions (long x wide x high) 7.500 x 2.500 x 2.500 mm
Distance between tie-bars (h x v) 1.100 x 960 mm
Injection pressure 1.730 - 2.030 bar
Mould height max 950 mm
Mould height min 400 mm
Oil tank capacity 690 l
Platen size (h x v) 1.510 x 1.440 mm
Power: installed max 53 + 55 kW
Screw diameter 70 mm
