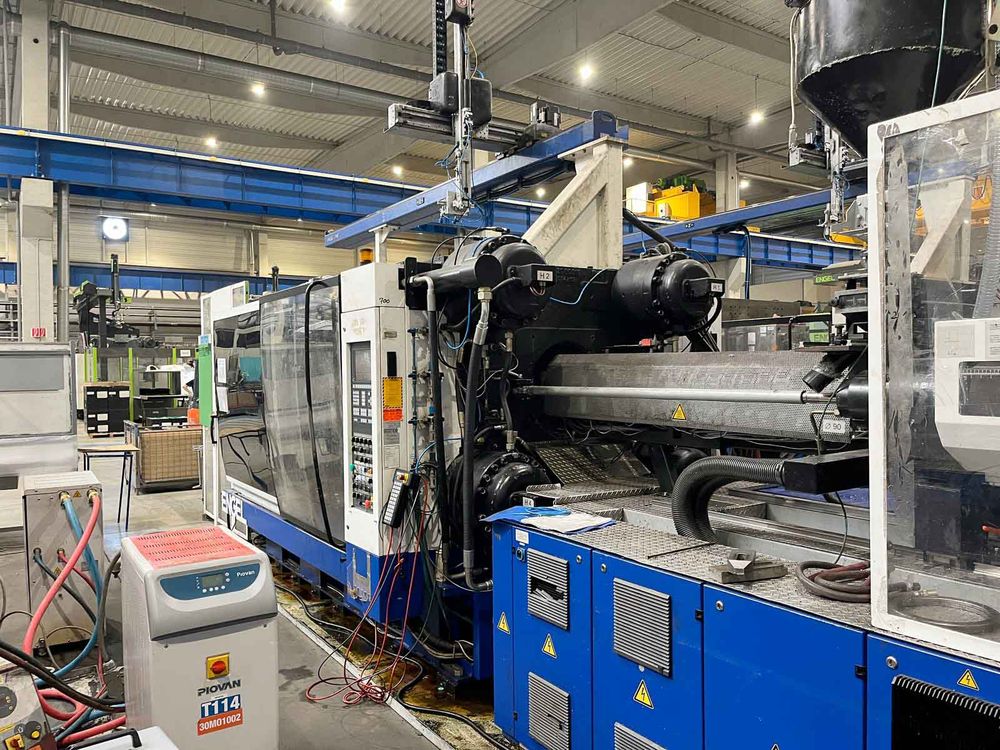

Engel Duo 4550 / 700 700 T

Linear Robot Engel ERC
Clamping force 7.000 kN
Control CC 100
Core pulls 2 + 2
Daylight between platens max 2.700 mm
Distance between tie-bars (h x v) 1.030 x 930 mm
Dry cycle time 7 sec/mm
Ejector stroke / force max. 300 / 90 mm / kN
Injection pressure 1.910 / 2.100 bar
Injection rate 2.488 cm³/s
Injection volume 2.860 cm³
Mold opening force 510 kN
Mould height max 1.350 mm
Mould height min 450 mm
Nozzle stroke / force max. 65 / 185 mm / kN
Oil tank capacity 1.000 l
Platen size (h x v) 1.460 x 1360 mm
Power: installed max 62 + 75 kW
Screw diameter 90 mm
Screw L/D ratio 24
Shot weight max 2.600 g
Weight 22.000 + 10.000 kg
