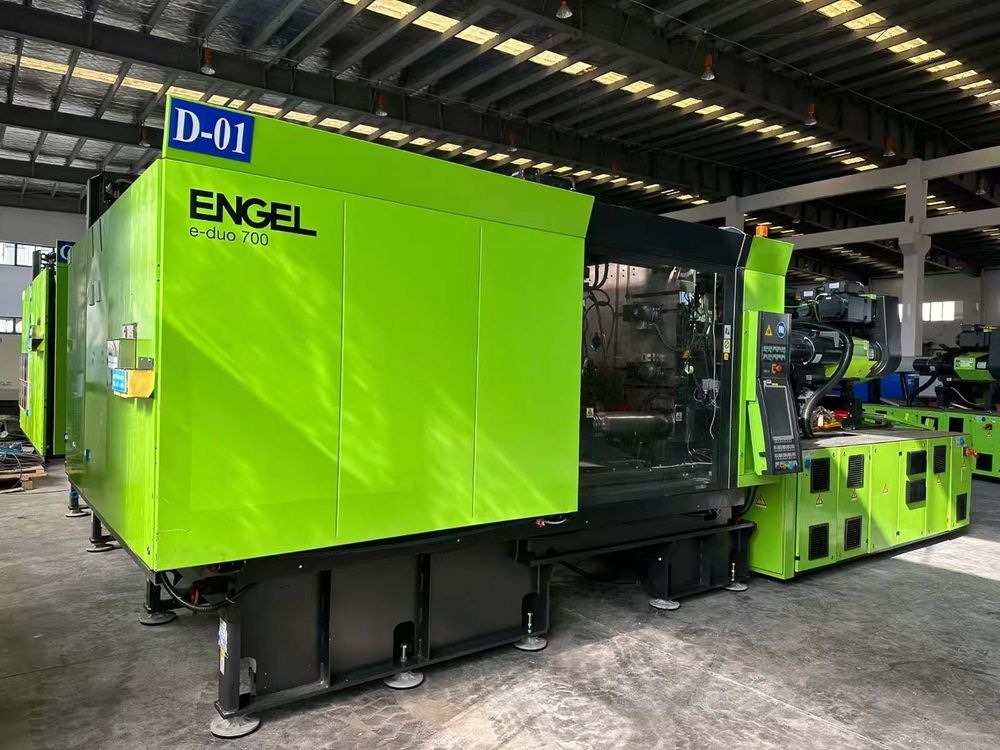

Engel E Duo 1340 / 700 700 T

HYBRYD Machine
Clamping force 7.000 kN
Core pulls 2 x 2
Daylight between platens max 1.600 mm
Dimensions (long x wide x high) 8.300 x 2.300 x 2.300 mm
Distance between tie-bars (h x v) 1.100 x 960 mm
Dry cycle time 2,9 sec/mm
Ejector stroke / force max. 200 / 68 mm / kN
Heating zones 5
Injection pressure 1.960 / 1.040 / 1.760 bar
Injection rate 885 / 1.131 cm³/s
Injection volume 740 cm³
Mould height max 850 mm
Mould height min 350 mm
Mould opening stroke max 1.400 mm
Nozzle stroke / force max. 700 / 50 mm / kN
Oil tank capacity 175 l
Platen size (h x v) 1.510 x 1.440 mm
Power: installed max 55 kW
Screw diameter 60 mm
Screw L/D ratio 20
Screw speed 250 rpm
Weight 22.500 + 8.000 kg
