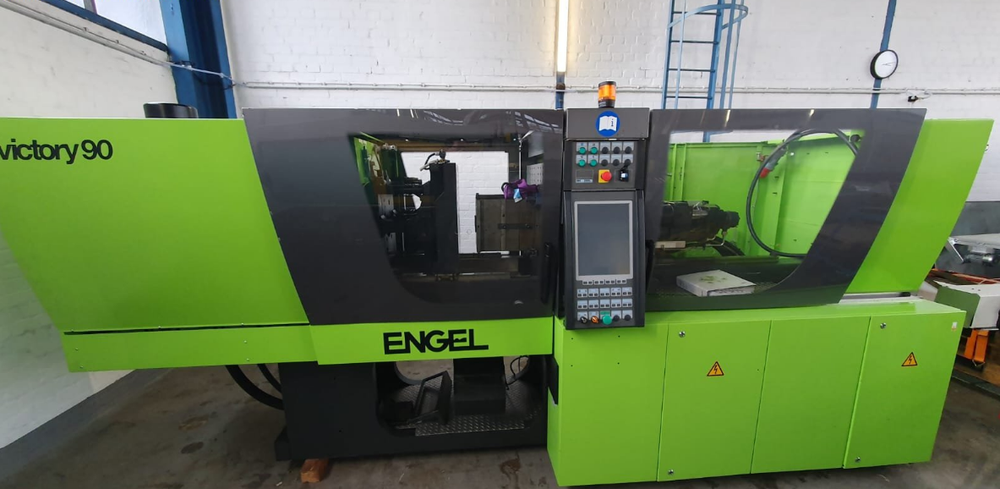

Engel Victory 80-90 tech 90 T

Steering: CC200
Year of construction: 2009
Operating hours: 70171 h

Technical data Closing side
Closing force: 900 kN
Plate size hxv: 740 x 680 mm
Minimum installation height: 300 mm
Maximum plate spacing: 800 mm
Opening method: 500 mm
Ejector stroke: 130 mm
Ejector force: 40 kN
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm

Technical data spray side
Screw diameter: 22 mm
Engine displacement: 38 cc
Injection pressure: 2060 bear
Snail length: 19 l/d
snail stroke: 100 mm
worm speed: 360 min
Injection flow to the open air: 78 g/s PS
Number of heating zones: 4
Nozzle path: 230 mm

Dimensions & Weight
Machine dimensions (L x W x H): 4.4 m x 1.5 m x 2 m
Total weight: 6700 kg

equipment
Bildschirmtext German
CEE socket 16A
Hydraulic core pull 1x
Air valve 2x
Machine with water battery
Machine without material hopper
Leveling elements
Schuko socket 10A
Tool heater 4x
