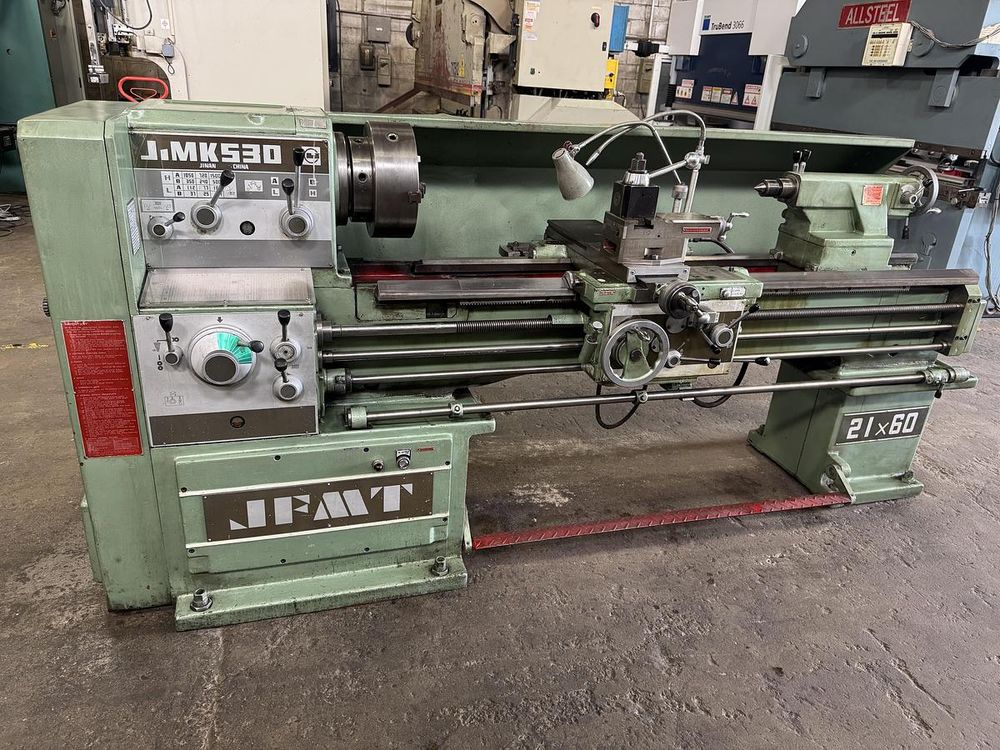

Engine Lathe 1500 RPM JFMTL JIMK 530X1500

Ref : 2735876-3-MT

Condition : Used

Manufacturer : -

Type : Engine Lathe

Spindle Speed : 1500 RPM

Model : JFMTL JIMK 530X1500

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

(2) 10" 3-Jaw Chucks
(1) 10" 4-Jaw Chuck
Steady Rest
Follow Rest
Taper Attachment
Inch/Metric Threading
Extra Gears
4-Way Quick Change Toolpost with Extra Holders
Coolant
Footbrake
2-Speed Tailstock

Swing Over Bed: 21″
Distance Between Centers: 60″
Spindle Bore: 3-1/8″
Spindle Speeds: 25 – 1500 RPM
Electrics: 600V / 3 Phase / 60 Hz
Approximate Weight: 6,000 lbs
Swing in Gap: 28″
Swing Over Cross Slide: 13-1/8″
Spindle Nose: D1-8" Camlock
Tailstock Spindle Travel: 6.3″
Tailstock Spindle Taper: #4 MT
Motor Power: 10 HP
