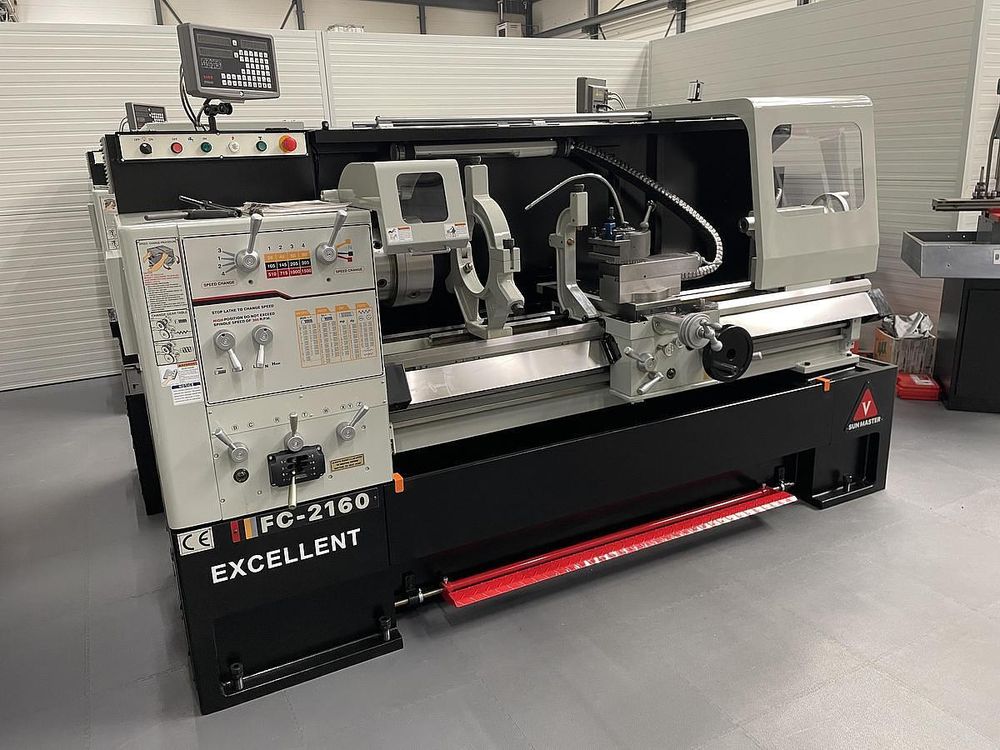

Engine Lathe 1500 rpm SUNMASTER FC-2160

Max. turning diameter over bed: 542 mm
Max. turning diameter over slide: 387 mm
Max. turning length between centers: 1500 mm
Spindle bore: 80 mm
Max. spindle speed: 1500 rpm
Spindle motor power: 7 kW
Spindle nose: Camlock
Tool holder type: Multyfix B
Machine dimensions (LxWxH): 285 x 110 x 180 cm
Machine weight: 2000 kg
Voltage: 400 V DC
Coolant system: Yes
Digital readout: Yes, 2 axes
Documentation: Yes

Included Equipment
Self-centering chuck 250 mm
Multy-Fix quick-change tool holder
Dead center MT.5
Dead center MT.4 with carbide tip
Spindle center sleeve Ø85 mm Taper 1/19.18
Level pads, 6 pcs
Tool set and box
Operation manual and parts list
Full-length splash guard
Halogen lamp
Chuck safety guards
Electrical system for CE
Steady rest with ball bearing
Follow rest with bronze tip
Protective cover on leadscrew for CE
