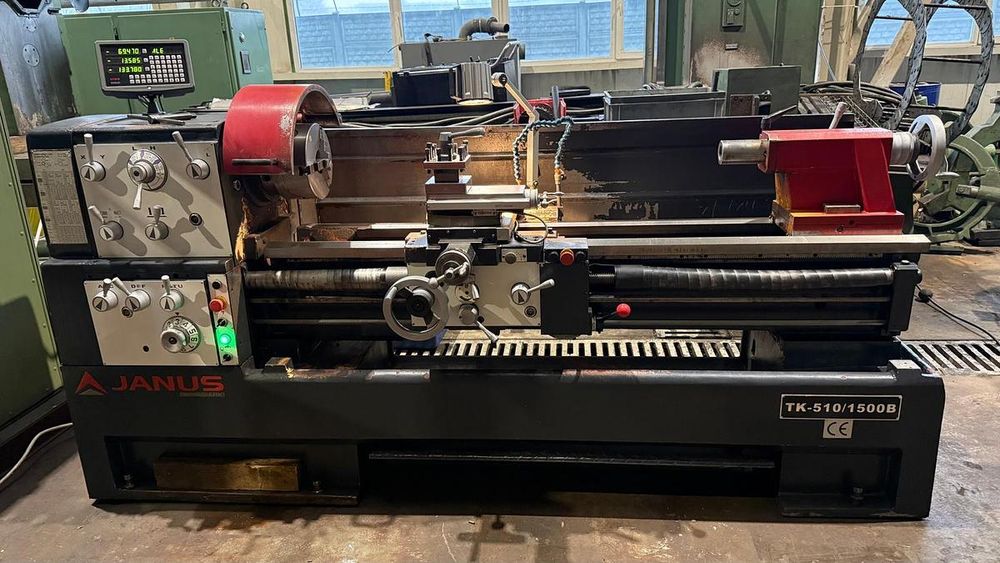

Engine Lathe 1580 rpm Janus TK 510 / 1500B

Maximum Turning Diameter Over Carriage 300 mm
Maximum Turning Diameter Over Bed 500 mm
Maximum Turning Diameter Over Bed with Recess 720 mm
Maximum Turning Length 1400 mm
Maximum Workpiece Length 1500 mm
Normal Cross Slide Feed 0.04–0.8 mm/rev
Fine Cross Slide Feed 0.014–0.05 mm/rev
Rough Cross Slide Feed 0.88–3.2 mm/rev
Rapid Traverse X/Z 4/2 m/min
Maximum Spindle Speed 1580 rpm
Spindle Bore 80 mm
Distance Between Spindle Axis and Bed 250 mm
Vertical Distance Between Spindle Axis and Tool 26 mm
Maximum Top Slide Travel 140 mm
Number of Metric Threads 44
Metric Thread Range 1–192 mm
Number of Inch Threads 26
Inch Thread Range ½–24 TPI
Number of Metric Threads 39
Metric Thread Range 0.25–48 mm
Number of Pipe Threads 38
Pipe Thread Range ½–96
Tailstock Quill Diameter 75 mm
Tool Post Cross Section 25 × 25 mm
Tailstock Quill Travel 150 mm
Lead Screw Pitch 12 mm
Work Area Lighting
Installed Power 10 kVA
Main Motor Power 7.5 kW
Coolant Pump Power 125 W
Rapid Feed Motor for Guard Plate 250 W
Lubrication Pump Motor Power 120 W
Control Voltage 110 V
Lighting Voltage 24 V
Power Supply 3 × 400 V; 50 Hz
Machine Dimensions 3168 × 1037 × 1312 mm
