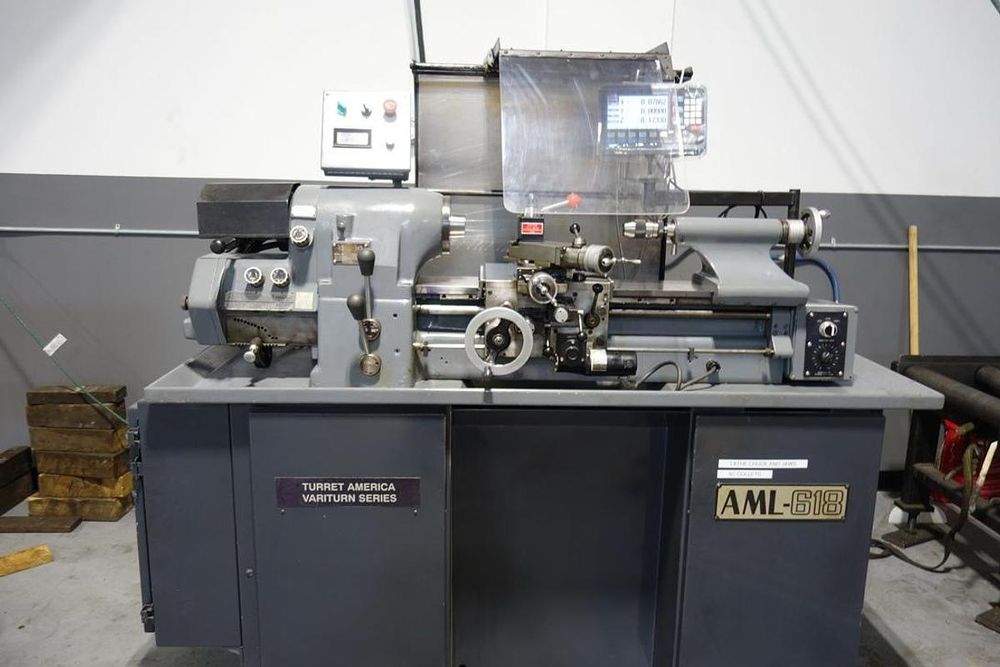

Engine Lathe 4,000 RPM AML 618

Collet capacity round type 5C 1-1/16"
Step chucks capacity 1-1/16" to 6"
Jaw chucks capacity 5"
Expanding collets capacity 3"
Variable spindle speeds 0 - 4,000 RPM
Hole through spindle 1-1/4"

Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"

Distance between centers 18"
Compound slide travel 3"
Carriage power feed range 5/16 - 7 IPM
Cross slide power feed range 3/16 - 4 IPM
Tailstock spindle diameter 1-3/8"
Tailstock spindle taper #2 MT
Inch threading range in gearbox 11 - 108 TPI
Metric threading range in gearbox 0.275 - 2.7 mm
Overall dimensions 75" x 33" x 82" H
Approximate weight 2,000 lbs
Large assortment of Hardinge 5C collets

2 axis digital read outs
Tool post
Tool post holder
5" drill chuck for tailstock
Live center
3 jaw chuck
Extra chuck jaws
Change gear
Sandvik tool bits
4" steady rest
