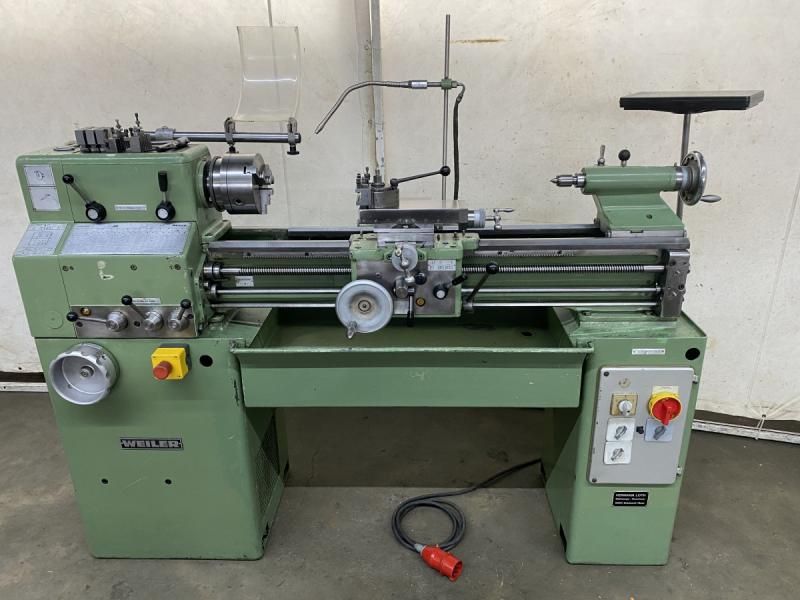

Weiler Engine Lathe 2000 rpm Praktikant 800R
EUROPE (Western and Northern)
Distance between centers: 800 mm
Swing over bed: 280 mm
Swing over cross slide: 160 mm
Center height over bed: 140 mm
Center height over cross slide: 80 mm
Spindle bore: 36 mm
Spindle speed range: 42–2000 rpm
Spindle motor power: 1 / 1.6 kW
Spindle speed selection: 2 motor speeds, 8 gearbox stages
Chuck mount: short taper DIN 55027 size 5
Tailstock taper: MT 3
Quill travel: 90 mm
Machine length: 1900 mm
Machine width: 700 mm
Machine height: 1300 mm
Machine weight: 600 kg
Features / Equipment
Longitudinal feed
Cross feed
3-jaw scroll chuck Ø 160 mm
Set of stepped jaws
Set of soft jaws
Quick-change tool post Multifix size A
Three tool holders
Live center
Emergency stop
Hinged chuck guard
Coolant system
Very low operating hours
Very good condition
