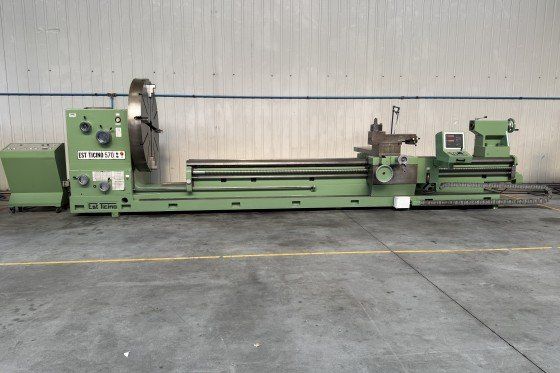

EST Ticino Engine Lathe 900 rpm ET BM 570
Ref :
2728467-3-GO
Condition :
Used
Manufacturer :
EST Ticino
Type :
Engine Lathe
Spindle Speed :
900 rpm
Model :
ET BM 570
Year(s) :
1987
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
EST TICINO ET BM 570
1987
Turning length 5000 / 7500 mm
Swing over bed diameter 1140 mm
Swing over cross slide diameter 810 mm
Swing in gap diameter 1500 mm
Gap length 2500 mm
Spindle bore 130 mm
Bed width 600 mm
Tailstock spindle diameter 130 mm
Tailstock stroke 300 mm
Spindle taper 6 Mk
Power 25 kW
Spindle speed range 9–900 rpm
Length 7500 mm
Width 2300 mm
Height 1650 mm
Weight 12000 kg
3 guideway construction
2-axis Heidenhain digital readout
Feed in 3 directions on all tool post slides
Central lubrication system
Workload flying in chuck 2500 kg
Workload not supported 8500 kg
Workload supported 10000 kg
Optional 4-jaw chuck approximately 1200 mm
Optional 4-jaw chuck approximately 1500 mm
Optional package with 3 fixed steady rests
