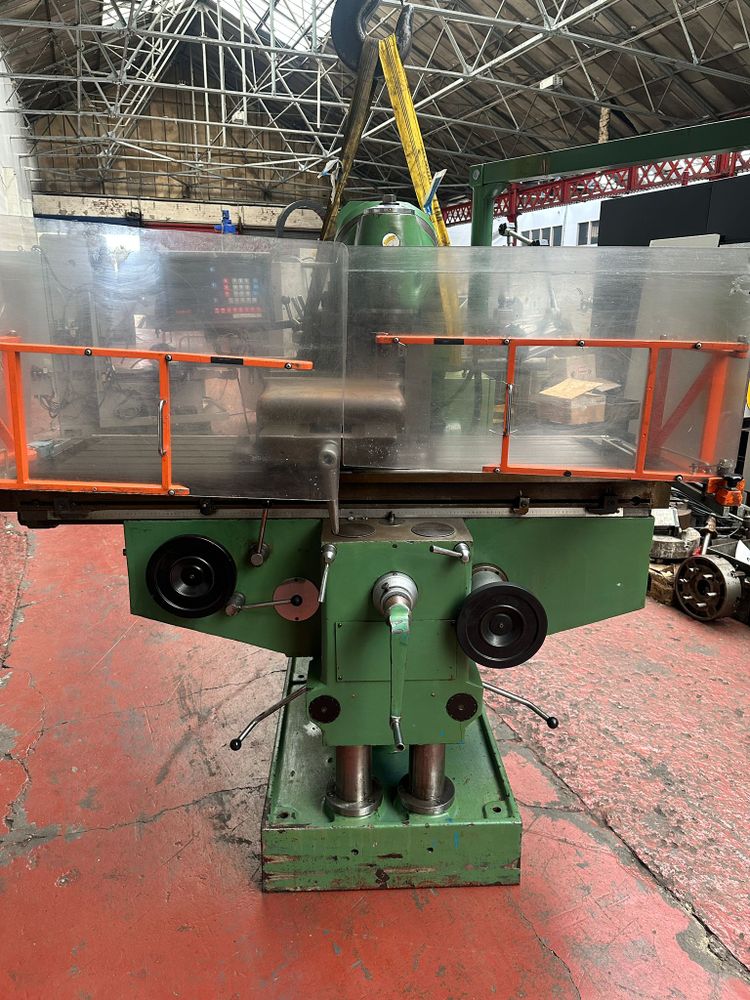

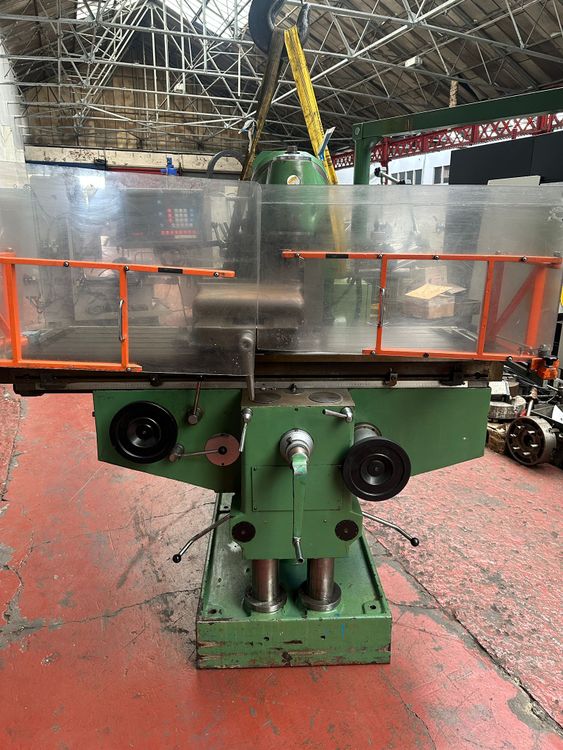

Europa CUP 5 UNI MILL 2050 RPM (27 steps)

X Axis Travel: 1300 mm
Y Axis Travel: 650 mm
Z Axis Travel: 440 mm
Table Size: 1635 × 460 mm
Spindle Speeds: 30 to 2050 RPM (27 steps)
Spindle Taper: ISO 50
Spindle Travel: 440 mm
Feeds (X & Y): 10 to 1000 mm/min
Feeds (Z): 5 to 500 mm/min
Rapid Traverse (X & Y): 2800 mm/min
Rapid Traverse (Z): 1400 mm/min
Swivel Head: ±45°
Max Table Load: 1800 kg
Graduations: Metric
Power Locking: Manual locking
Lubrication: Central lubrication
Machine Weight: Approx. 3600 kg
Machine Dimensions: 2010 × 2621 × 1950 mm
