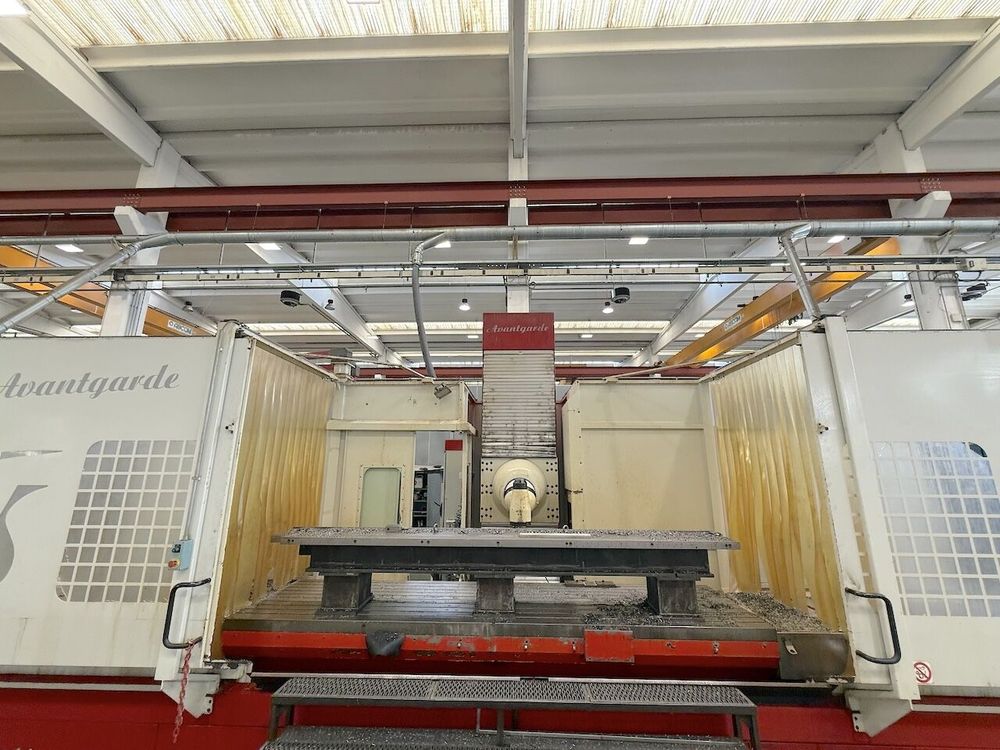

STS AVANTGARDE HS 4000 rpm

Travel X: 4000 mm
Travel Y: 2000 mm
Travel Z: 1500 mm
A Axis: 144 × 2.5°
C Axis: 144 × 2.5°

Control: SELCA 4045D + SELBOX S2
Optical Scales
Automatic Strong Head
Coolant Through Spindle 20 Bar
High Pressure Coolant 20 Bar
Chip Conveyor

Rear Auger Chip Conveyor X = 4000 mm
Front Auger Chip Conveyor X = 4000 mm
Transverse Chip Conveyor
Table Surface: 4200 × 1100 mm
Table Translation: 4000 mm
T-Slots: 10 × 18 mm

Additional Table Surface: 1100 × 1100 mm
B Axis Accuracy: 0.001°
Spindle Power: 37 kW
Gearbox: Mechanical
Spindle Speed: 4000 rpm
Spindle Taper: ISO50 DIN69871/A

Rapid Traverse X: 40 m/min
Rapid Traverse Y: 40 m/min
Rapid Traverse Z: 40 m/min
Feed Rate X: 20 m/min
Feed Rate Y: 20 m/min
Feed Rate Z: 20 m/min
ATC Capacity: 32 Positions
Max. Tool Diameter: 125 mm
Max. Tool Diameter with Free Adjacent Space: 180 mm
Max. Tool Length: 350 mm
Max. Tool Weight: 20 kg
Tool Taper: ISO50
Head Max. Speed: 4000 rpm
Head Max. Power: 37 kW
Floor Space: 9700 × 5300 × 4350 mm
