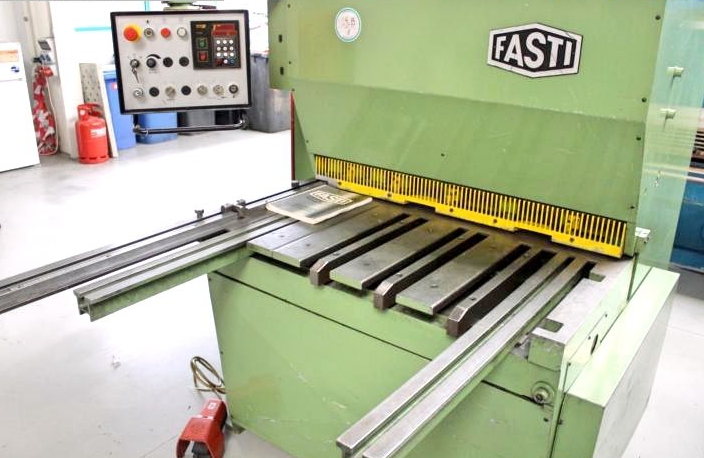

Fasti 509-10/4

Sheet Width Max. 1010 mm
Plate Thickness Steel 4.0 mm
Plate Thickness Stainless Steel 2.5 mm
Plate Thickness Aluminum 6.0 mm
Number of Strokes Loaded Max. 20 strokes/min
Cutting Angle 1.5°
Work Height Max. 900 mm
Control Type ELGO
Total Power Requirement 5.5 kW
Machine Weight 2,200 kg
Machine Dimensions 1500 x 2155 x 1606 mm
Robust NC Electro-Hydraulic Guillotine Shear
NC Electro-Motorized Backgauge
NC ELGO Positioning Control Typ 85
Electric Cutting Length Limiter
Manual Cutting Gap Adjustment
1x Side Stop with Scale
2x Support Arms
1x Freely Movable Foot Switch
Original Operating Instructions
Pneumatic Holding Device for Thin Sheet Metal Blanks
