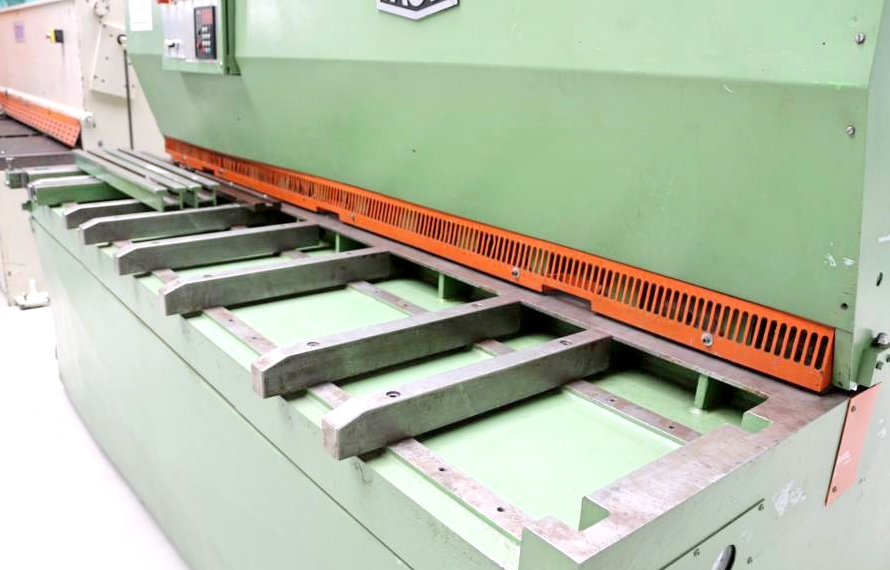

Fasti 509-25/4

Control type: NC
Control: ELGO TYP 85

Plate width: 2503 mm
Steel cutting thickness (ST): 4.0 mm
Stainless steel cutting thickness (VA): 2.5 mm
Aluminum cutting thickness (ALU): 6.0 mm
Strokes per minute (loaded): 15 - 20
Cutting angle: 1.7°

Max working height: 900 mm
Total power requirement: 8.5 kW
Machine weight: 3400 kg
Machine dimensions (L x W x H): 2913 x 2250 x 1760 mm

NC electro-hydraulic guillotine shear
NC motorized backgauge
Manual cutting gap adjustment
Front support table with recessed grips
Side stop with scale and tilting cam
Two front support arms
Movable foot switch
Front finger guard
Front emergency stop button
Operating instructions (PDF)
