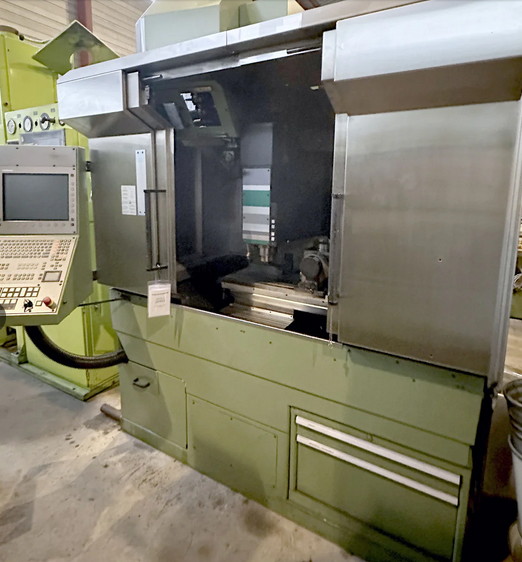

Fehlmann PICOMAX 60-HSC 5 Axis

X-Axis Travel: 505 mm
Y-Axis Travel: 355 mm
Z-Axis Travel: 610 mm
Table Size: 920 × 380 mm
Maximum Table Load: 250 kg
C-Axis / Rotary: 5-axis simultaneous

Control: HEIDENHAIN 530M
Tool Capacity: 28 tools
Tool Interface: HSK E50

Spindle Speed: 50 – 30,000 rpm
Feed Rate: 1 – 20,000 mm/min

Voltage: 400 V / 3 Phase / 50 Hz
Total Power: 22 kVA

Laser Tool Setting System: Included
Probe Preparation: Renishaw MP40 ready
4th/5th Axis Attachment: ATS 160
Electronic Handwheel: Included
Coolant System: Included
Dust Extraction (Graphite): Included
Control Cabinet Air Conditioner: Included
Tool Holders: Included
Spindle Replacement: 2016

Machine Weight: 3,750 kg
Dimensions (L × W × H): 2070 × 1936 × 2642 mm
