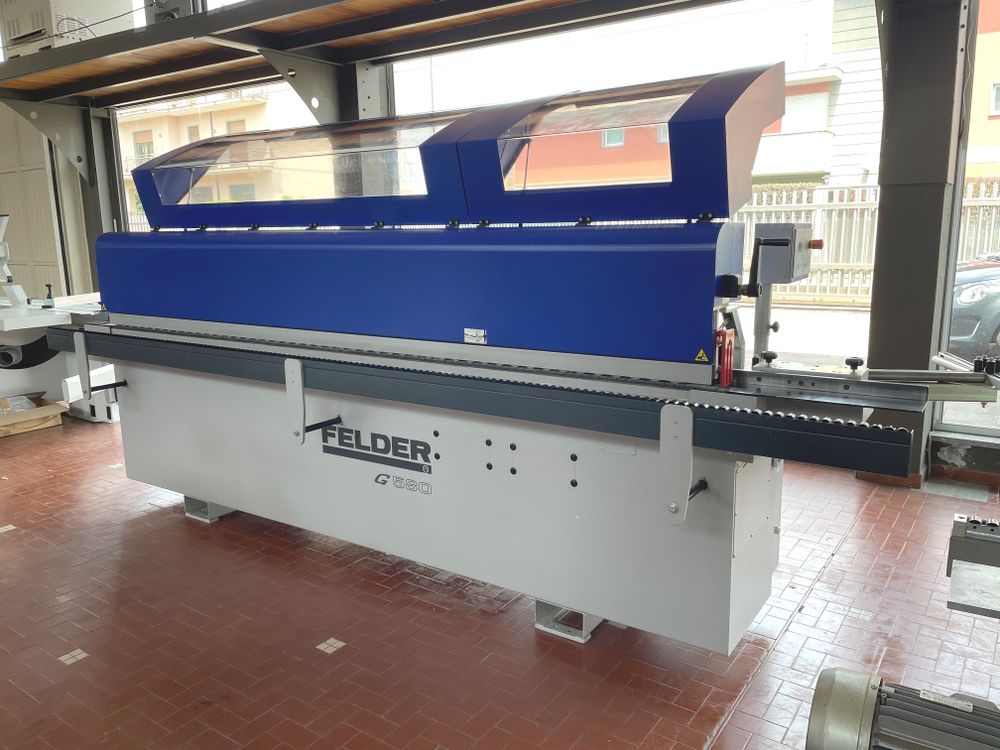

Felder G580

Edgebander with premilling unit and corner rounding unit

Technical data:
Edge thickness (mm) 0,4–5,0
Piece height (mm) 8–50
Min. workpiece width (mm) 70
The minimum width of the part varies with the length, height and surface finish of the part.
Min. length of the piece (mm) 140

Units:
-Chain feed with feed speed of 9 m/min
-Additional extractable work surface 450 mm. – facilitates working with large pieces
-Coiled edge band feed support plate d. 720 mm for PVC, ABS veneer edges
-Edge feeding is automatic for edge materials with a thickness of 0,4-3 mm, strip glue is separate feed of strip edges up to 5 mm
-Guillotine shear for cutting coiled edge bands up to 3 mm. in thickness in ABS/PVC
-Premilling unit with diamond tipped spindle heads and 0,75 indipendent motors, 12.000 KW x 0, 70 rpm
-Glue unit for glue granulate from the teflon coated glue pot by immersion (~ 250lfm for 1kg of granulate on a 19mm panel)
-Pressing unit is mechanically pre-stressed, 1 roller d. 110 and 2 rollers d. 50, adjustment by means of an edge portion
-End cutting unit with 1 motor of 0,55 KW, 12.000 rpm
-Flush milling unit, 12.000 rpm, 2 kW, Flush, radius milling, flush milling, shamfer milling for thin edges, adjustment by means of edge section
Corner processing unit for soft and post-forming workpieces for processing front edges
-1-motor rounding unit for post and softforming up to 50 mm

Finish Groups:
-Radius scraping unit
-Flush scraping unit
-Buffing unit with 2 motors
